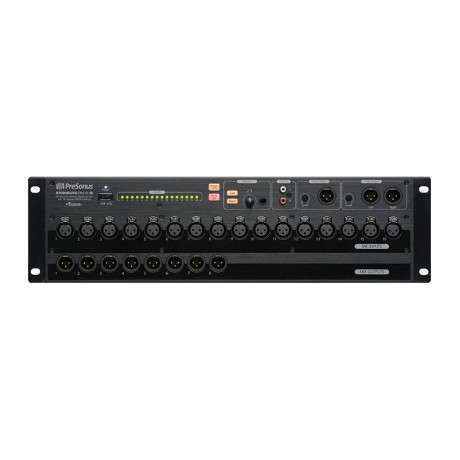

Presonus StudioLive RM16AI

Features:

StudioLive RM32AI/RM16AI

• Fully recallable digital mixer

Inputs and Outputs

• 32/16 locking XLR inputs, each with:
  • Recallable XMAX™ Class A mic preamps
  • +48V phantom power
• Stereo tape input (RCA jacks)
• 16/8 XLR line-level Mix outputs
  • Four 300 ms alignment delays on the last four Mix outputs
• 2/1 DB25 jacks mirror 16/8 line-level Mix outputs
• 3 XLR main outputs (left, right, mono/center) with analog trim pots
• S/PDIF digital output on removable option card
• Headphone output with volume knob and selectable source
• 1x1 MIDI I/O (for future implementation)

Channels and Buses

• 32 internal channels
• 25 mix buses
  • 16 aux mix buses
  • 3 main mix buses (left, right, mono/center)
  • Stereo solo bus
  • 4 internal FX buses (2 reverb, 2 delay)
• Fully integrated, continuously bidirectional, 52-in/34-out, FireWire 800 direct recording interface (24-bit, 44.1/48/88.2/96 kHz)
