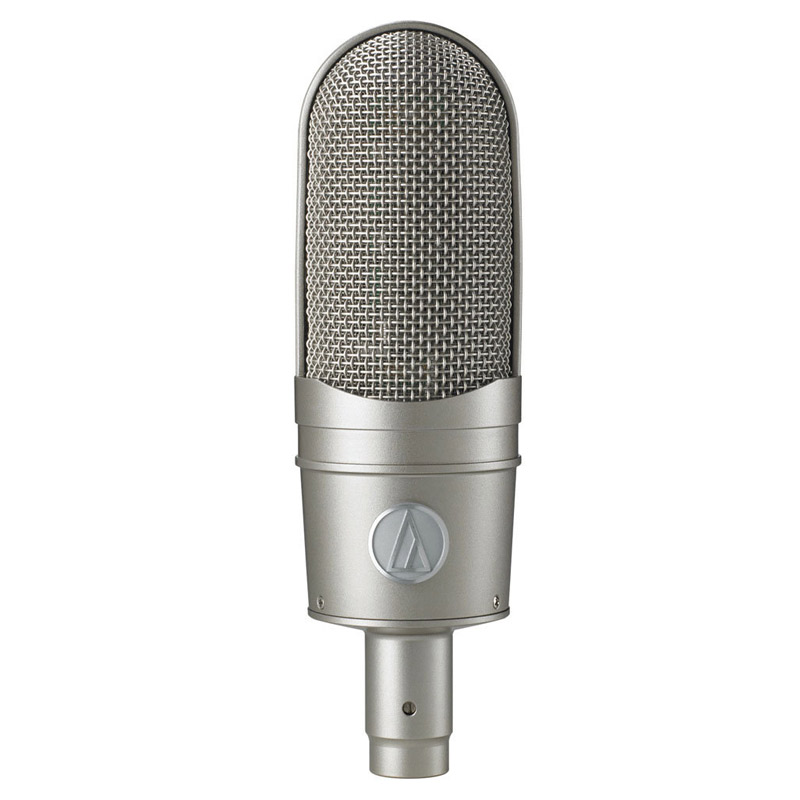

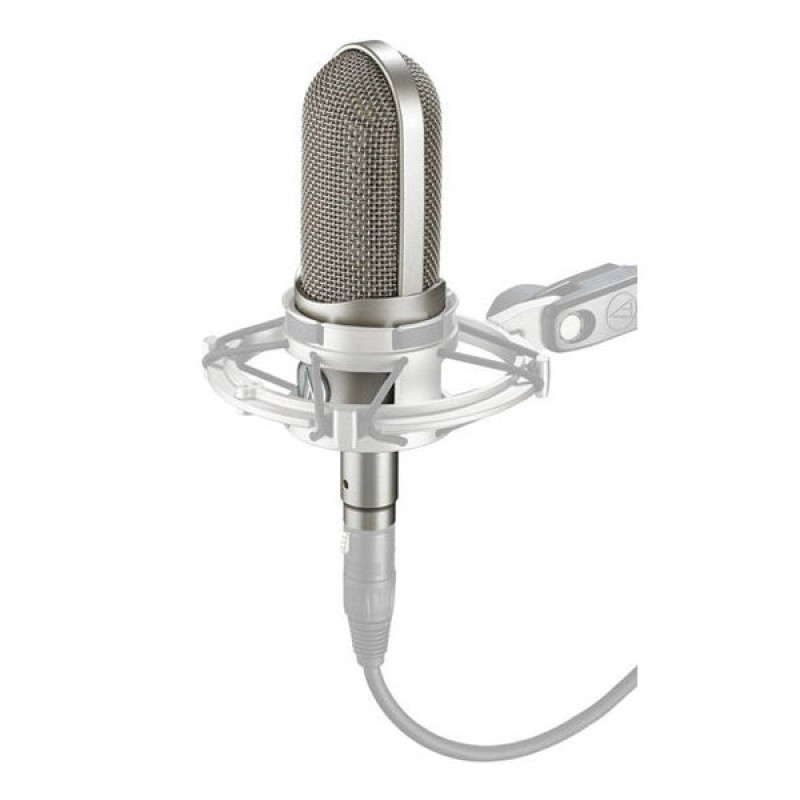

Audio-Technica AT4080

Features:

• Smooth, warm and natural sound for recording, broadcast, and sound-reinforcement applications
• Audio-Technica ribbon design with 18 patents pending including proprietary MicroLinear™ ribbon imprint for superior durability
• Innovative dual ribbon construction for increased sensitivity
• Extremely powerful N50 neodymium magnets for high output level
• Ultrafine mesh guards against ribbon damage
• Classic bidirectional (figure-8) polar pattern picks up sounds equally from the front and back of the element
• High-SPL capability and extended frequency response
• Extended frequency response for natural audio reproduction
• Acoustic baffle system and extra large output transformer provide natural low-frequency response and extended dynamic range
• Handmade production, including ribbon corrugation, imprint and assembly
• Open acoustical environment of the housing assembly minimizes unwanted internal reflections
• Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers

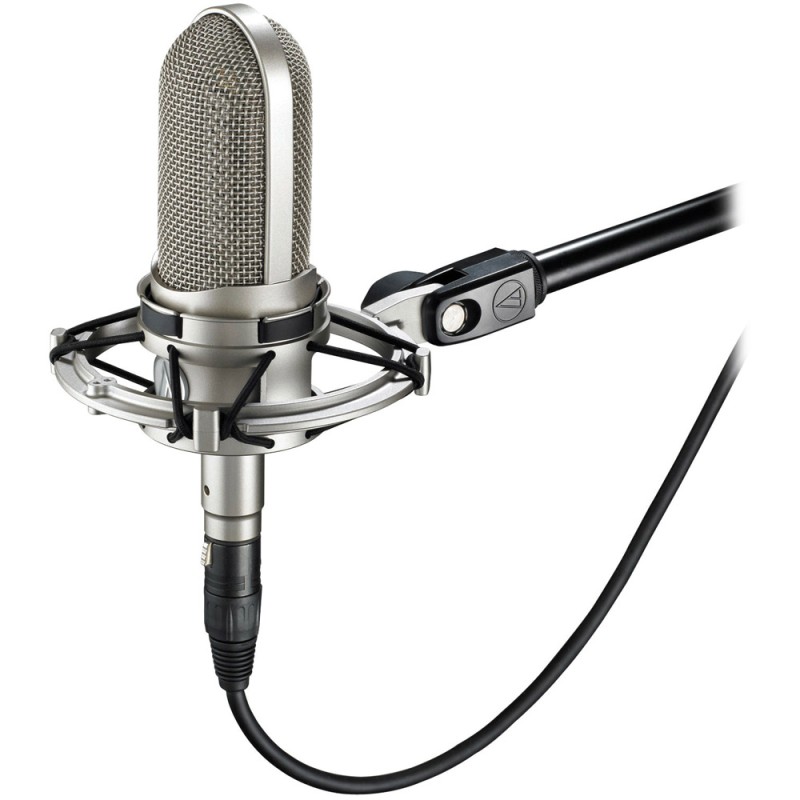

• Custom shock mount provides superior isolation
• Polar pattern: Figure-8
• Frequency response: 20Hz-18kHz
• Open circuit sensitivity: -39dB (7.9 mV) dB re 1V at 1 Pa
• Impedance: 100 ohms
• Max input sound level: 150dB SPL, 1kHz at 1% T.H.D.
• Noise: 22dB SPL
• Dynamic range (typical): Mid - 128dB, 1kHz at Max SPL
• Signal-to-noise ratio: 72dB, 1kHz at 1 Pa
• Phantom power requirements: 48V DC, 3.0 mA typical
• Weight: 16.7 oz.
• Dimensions: 6.99" length; 2.10" maximum body diameter
• Output connectors: Integral 3-pin XLRM-type
