Motu موتو کارت صدا

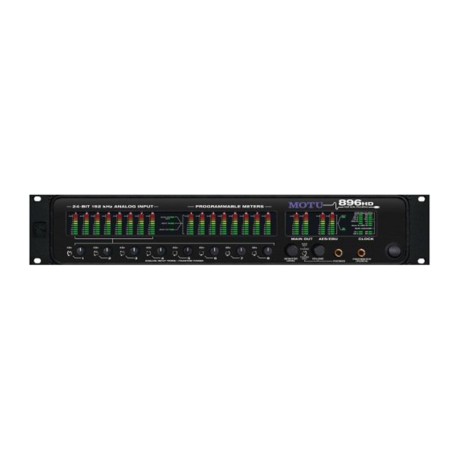

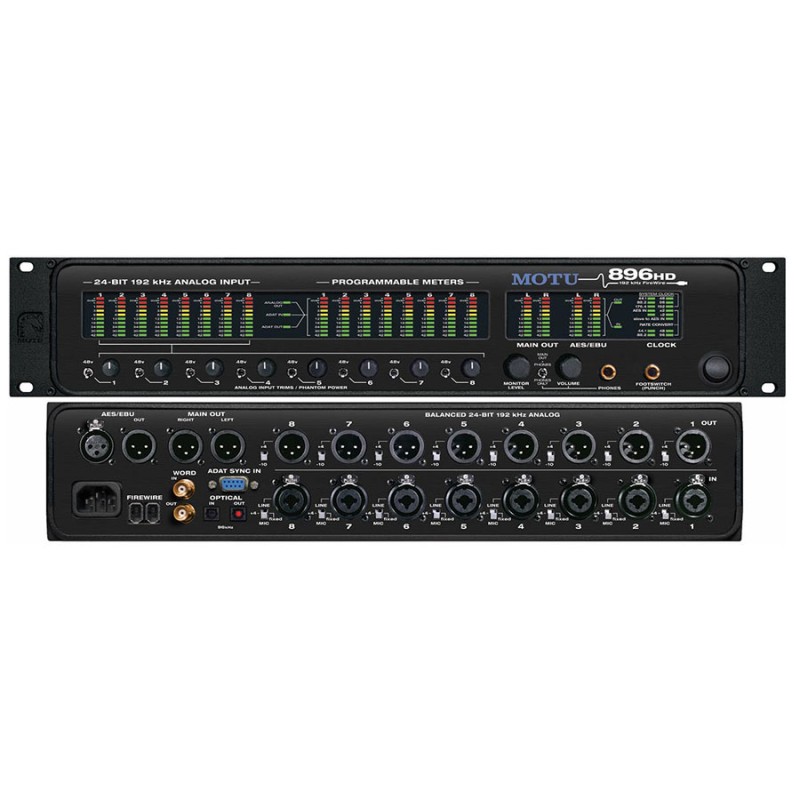

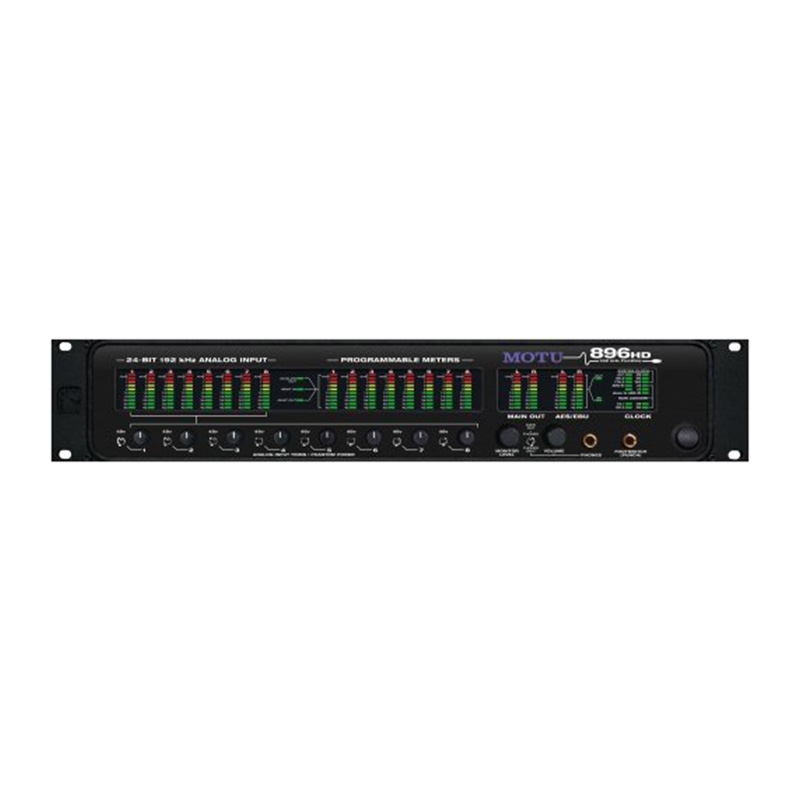

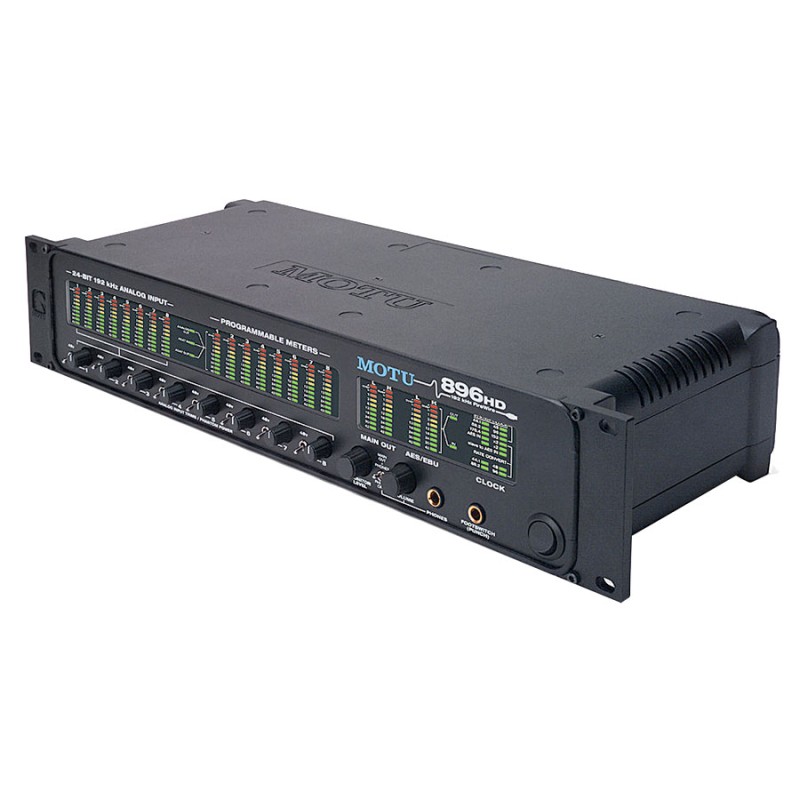

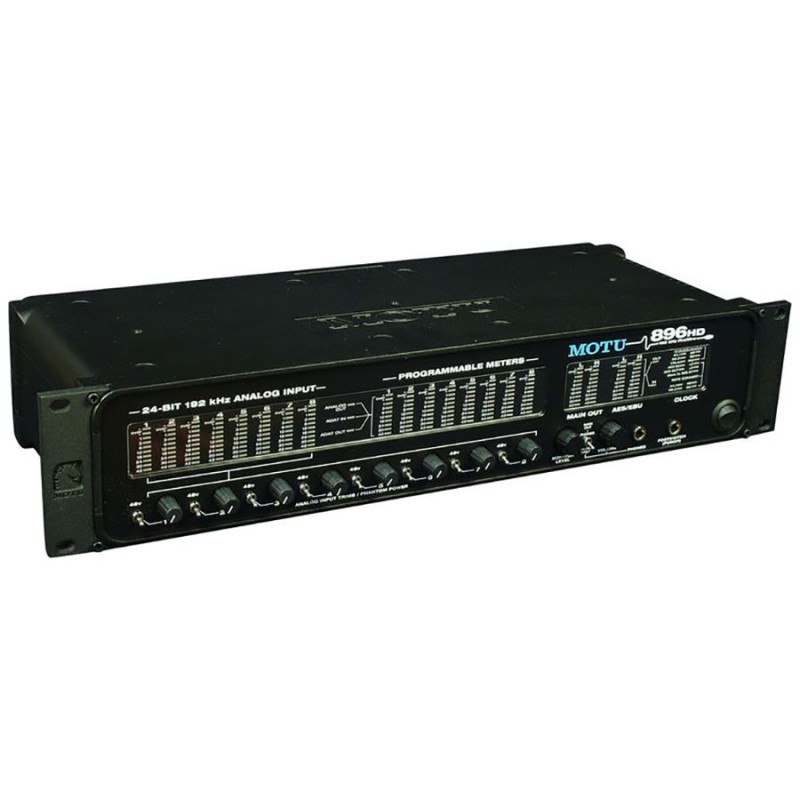

کارت صدا Motu 896HD

certified تمامی کالاهای تهران ملودی اصل می باشد.
خرید آنلاین در اولویت ارسال می باشد.

FireWire Audio Interface with 24-bit/192kHz Recording System and 8-channel XLR/TRS Analog Inputs, Each with Microphone Preamps

Features:

  • CueMix DSP latency-free monitoring system.
  • Stand-alone operation - program your mixes at the studio and then bring the MOTU 896HD to your gig - no computer needed.
  • Multiple CueMix DSP mixes - create different monitor mixes for the main outs and headphones. Add send/return loops for outboard gear - with no latency. Up to four separate mixes are supported (two at 176.4 or 192kHz).
  • Eight mic pre-amps with switchable 48-volt phantom power and front-panel trim controls.
  • 18 inputs / 22 outputs - there's no channel sharing in the MOTU 896HD; the analog inputs, optical inputs, AES/EBU I/O, headphone out and main outs are all handled as separate channels. At 176.4 or 192 kHz, main outs and headphone are mirrored.
  • 8 channels of 24-bit ADAT optical input/output. Eight channels at 44.1/48kHz. Four channels at 88.2/96kHz.
  • Sample-accurate digital transfers between ADAT digital tape decks and the computer via the ADAT sync port.
  • Expandable - add additional 828, 828mkII, 896 or MOTU 896HD FireWire interfaces for additional I/O.
  • Eight 24-bit 192kHz analog inputs on XLR/TRS combo jacks.
  • Eight 24-bit 192kHz analog outputs on XLR jacks.
  • Separate XLR main outs and front-panel headphone jack, each with independent volume control.
  • Stereo 24-bit 96kHz AES/EBU in/out
  • Word clock in and out
  • Includes drivers for Mac & PC, including ASIO, WDM, Wave, GSIF, and Core Audio. Supports all popular Macintosh and Windows audio software.
  • 100% compatible with all host-based effects processing in today's popular audio programs.
  • Includes AudioDesk full-featured sample-accurate workstation software for the Macintosh with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync.
  • Two FireWire ports for daisy-chaining without a hub
  • Front panel volume control for main outputs.
  • Front panel headphone jack with independent volume control.

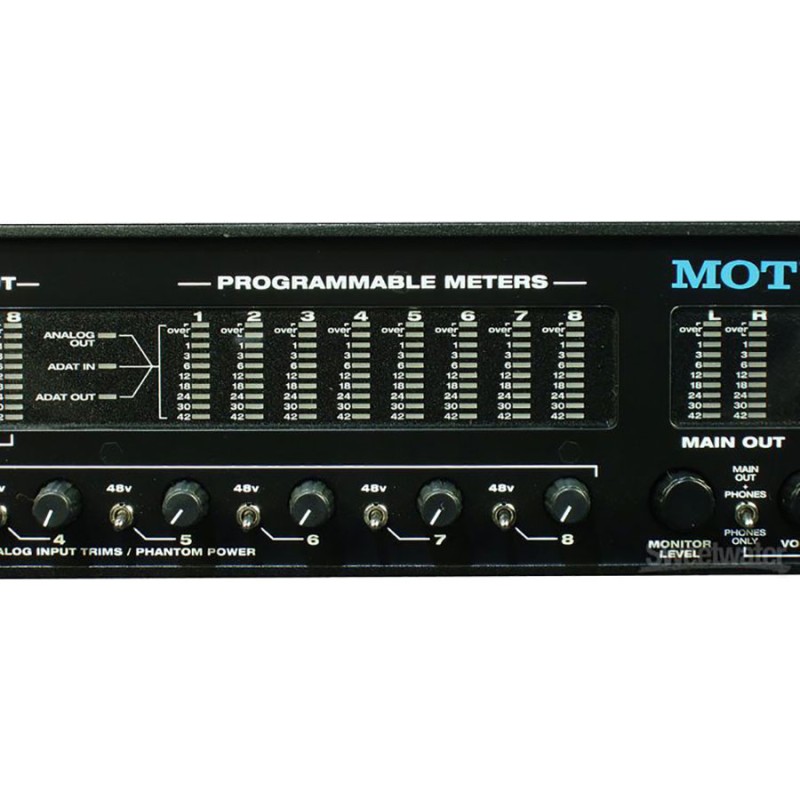

  • Programmable front panel meters for all analog and digital I/O
  • Dedicated front panel clock status LEDs.
مشخصات توضیحات
نوع اتصال به کامپیوتر FireWire
نوع کارت صدا کارت صدا اکسترنال رک
ورودی و خروجی همزمان 14
نرخ نمونه برداری 24bit/192kHz
پردازنده داخلی دارد
تعداد ورودی آنالوگ 8
نوع ورودی آنالوگ 8mic/line/instrument
تعداد خروجی آنالوگ 10
نوع خروجی آنالوگ 8 balanced outputs, 1x Headphone 1/4", 1x Optical
تعداد ورودی دیجیتال 2
نوع ورودی دیجیتال 1x AES/EBU, 1x ADAT
تعداد خروجی دیجیتال 2
نوع خروجی دیجیتال 1x AES/EBU, 1x ADAT
تعداد ورودی میکروفن (پری امپ) 8
فانتوم پاور دارد
ورودی و خروجی میدی ندارد
AC Power دارد
تعداد اسلات های رک 2
