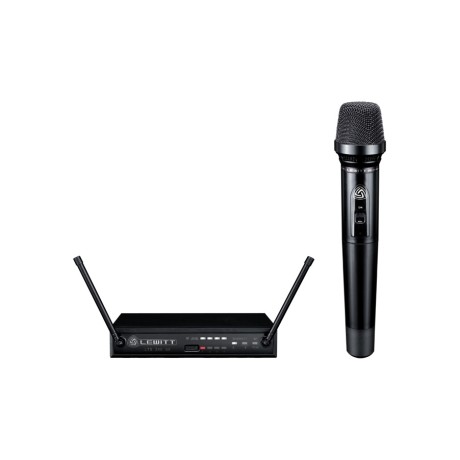

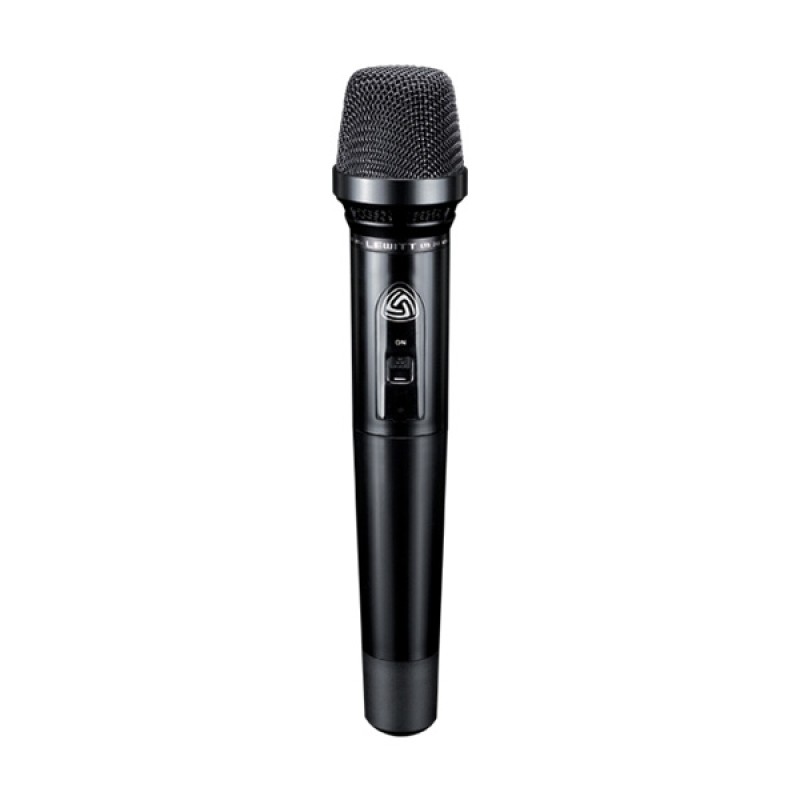

Diversity wireless vocal microphone
| Transmission principle | UHF, FM, diversity |
|---|---|
| Directional pattern | cardioid |
| Available channels | 4 selectable channels |
| Modulation | FM (25 kHz max. deviation), compander system with pre- and de-emphasis |
| Audio bandwidth | 70 ... 18.000 Hz |
| THD | < 0,5 % typical |
| Signal / noise ratio | > 85 dB-A typical |
| RF radiation | 10 mW |
| Battery life | 2 pcs AA size dry batteries, 10 hours typ. |
| Dimensions | 50 dia. x 262 mm 1,96 dia. X 10,3 inch |
| Net weight | 258 g 9,1 oz |
| Audio outputs | balanced 3-pin XLR, unbalanced TS 1/4" jack |
|---|---|
| Gain adjustment range | 0 - 6 dB |
| Squelch | yes |
| Dimensions | 160 x 115 x 30 mm 6,3 x 4,5 x 1,2 inch |
| Net weight | 540 g 19 oz |
