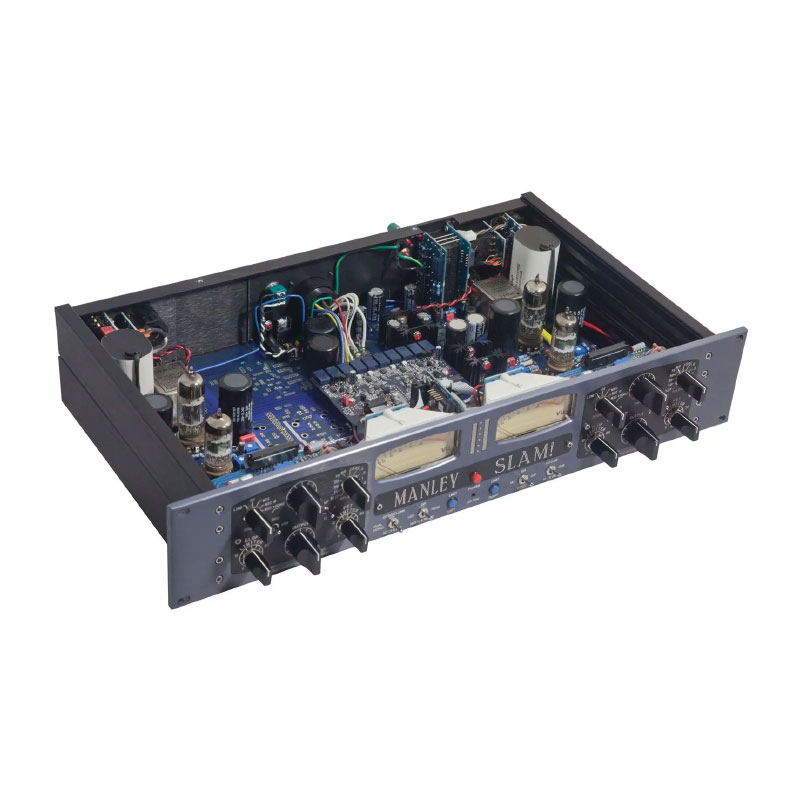

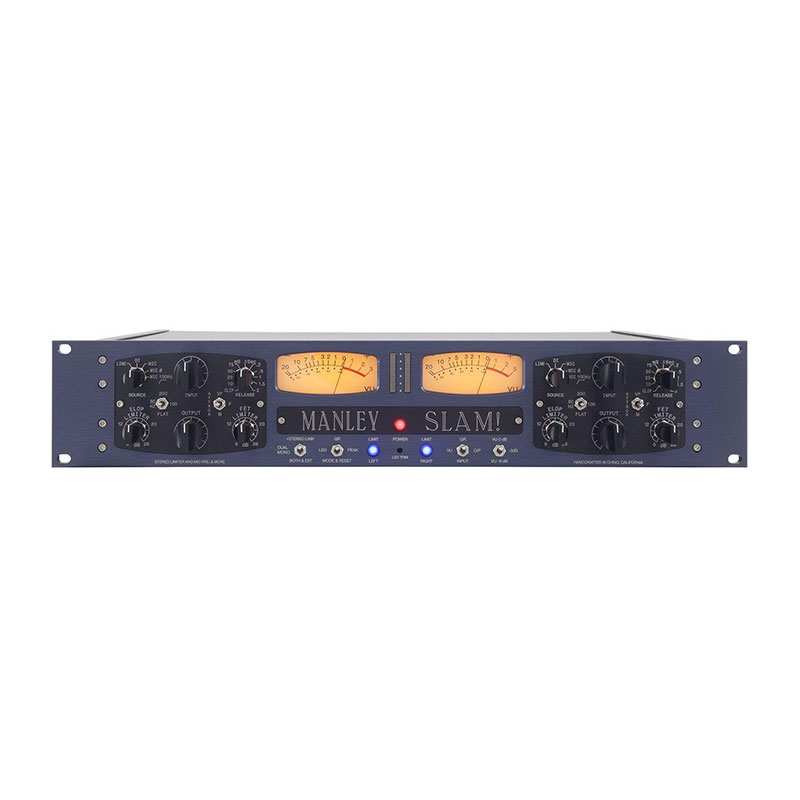

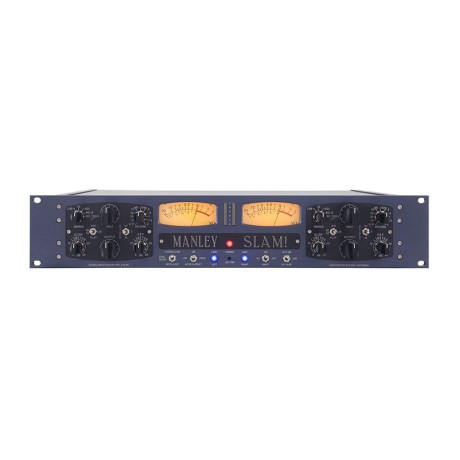

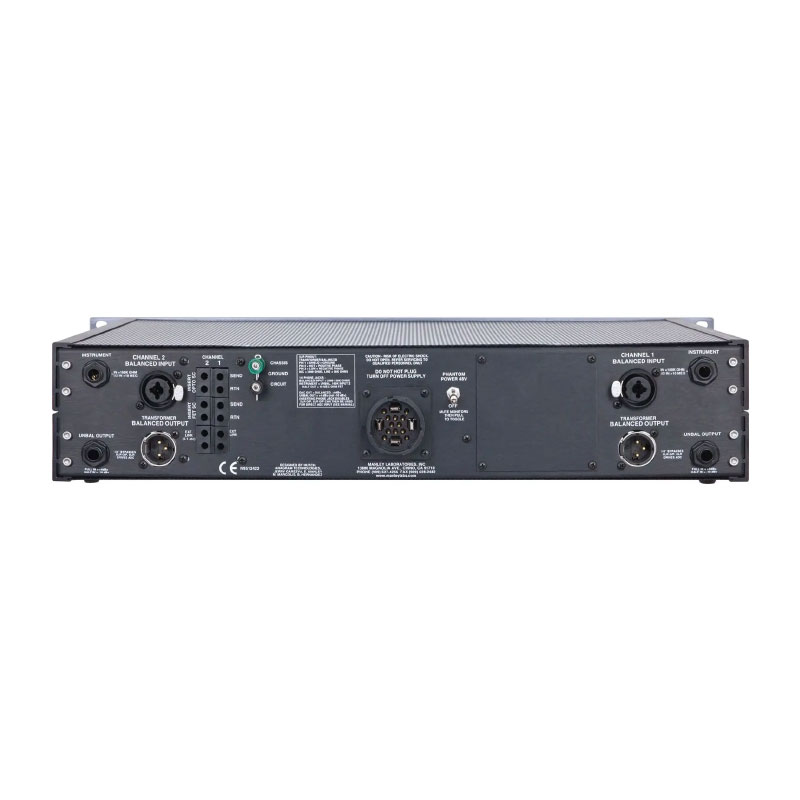

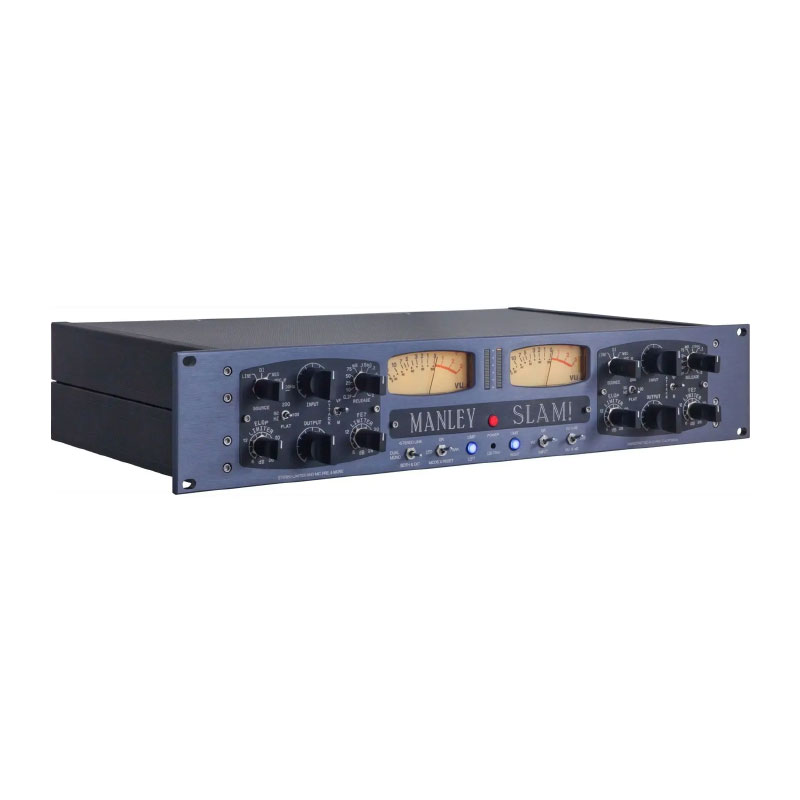

Manley SLAM! 2-channel Tube Microphone Preamp & Limiter

Features:

• Input Tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for low noise and stable bias
• Output Tubes: 2 x 6414W NOS USA dual triodes
• I/O: Manley transformer-coupled, Balanced Inputs and Outputs
• Microphon epreamplifier: Selectable 48V phantom power and phase reverse
• Gain: 60dB max Microphone preamplifier, 43dB max DI, 20dB max Limiter Gain
• Input Impedance: 2000 ohms Micpre, 1Meg ohms DI
• FET Limiter: Attack: approx. 100S; Release: 10mS to 2Sec; Ratio: better than 20:1
• ELOP Limiter: Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec; Ratio: 10:1
• Frequency Response: 5Hz to 60KHz
• Maximum Output: +32dBm, +30dBm (into 1Kohm load)
• Dynamic Range: 115dB typical
• Output Impedance: 200 ohms
• Power Consumption Slam!: 0.480 Amps (480 milliamps = 480mA) @ 120V = 57.6 Watts, 0.240 Amps (240 milliamps = 240mA) @ 240V = 57.6 Watts
• Mains Voltage Frequency: 50~ 60Hz
• Size: 19" X 12" X 3.5" (occupies 2 RU)
• Shipping Weight: 25 lbs.
