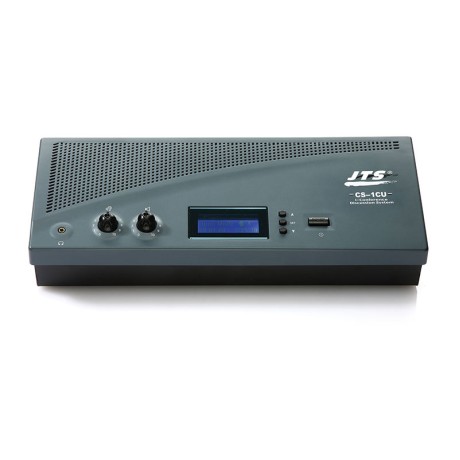

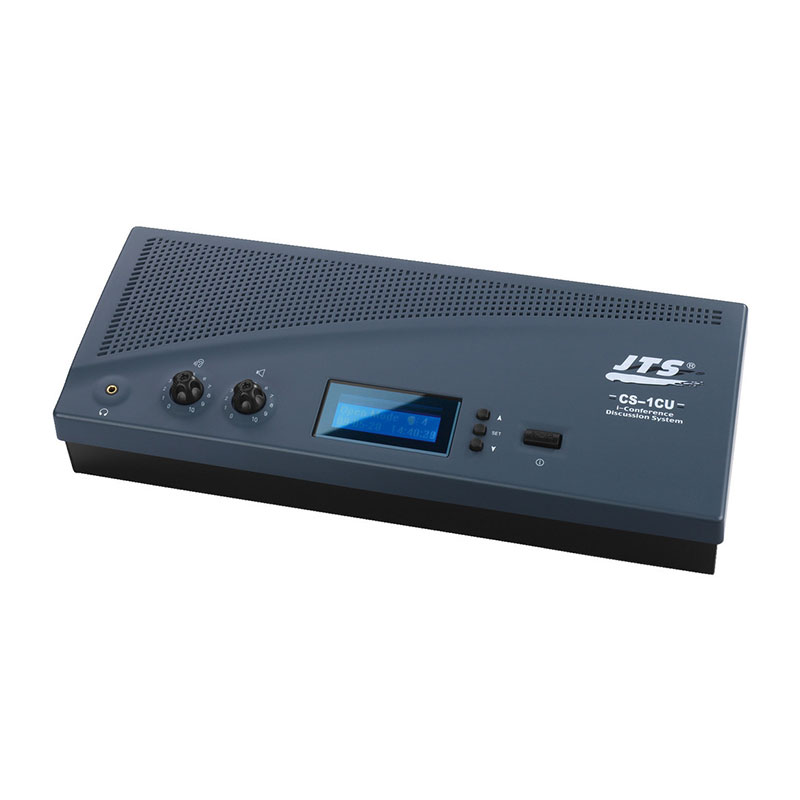

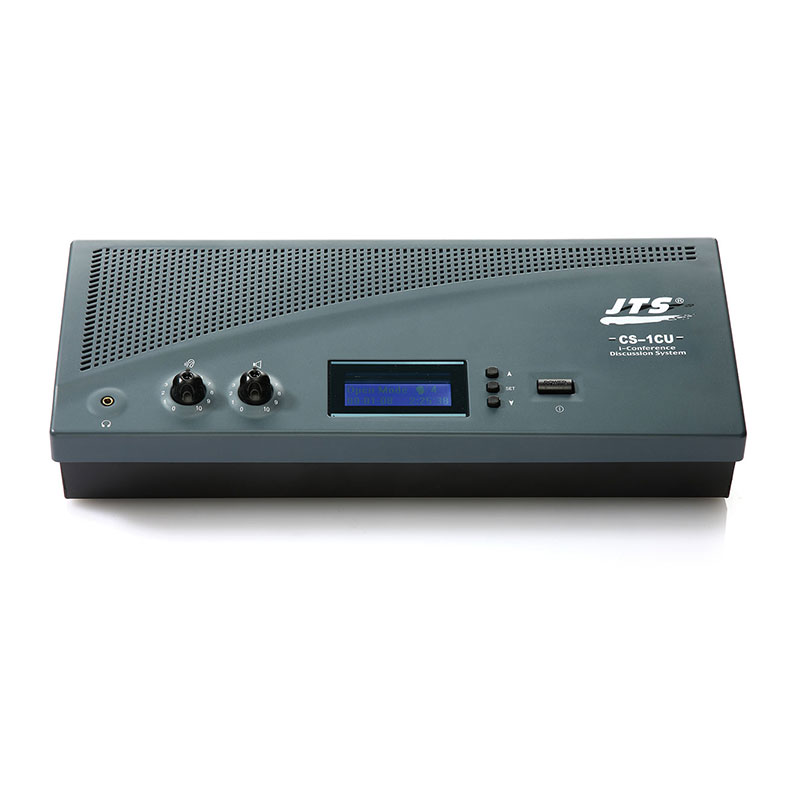

JTS CS-1CU

Features:

• Voltage: VAC100-240~, 50/60Hz
• Current consumption: MAX 0.9A (100VAC) / 0.3A 240VAC)
• DC supply to contribution units: ±15V
• Line, telephone coupler and insertion in/outputs (unbalanced)
• Input sensitivity: -14dBV/+11dBV (nominal/maximum)
• Input impedance: 33KΩ
• Output level: -14dBV/+11dBV (nominal/maximum)
• Output Impedance: 500Ω
• Recorder in/output (unbalanced)
• Input sensitivity: -20dBV/+5dBV (nominal/maximum)
• Input impedance: 47KΩ (for L & R channel)
• Adjustment: -20dBV/+5dBV (nominal/maximum)
• Output level: +0/-30dBV
• Output Impedance: 500Ω
• External microphone input (XLR (F) balanced)
• Input sensitivity: -56dBV
• Adjustment: +6dBV/-6dBV (nominal/maximum)
• Phantom supply: 12V+/-1V, 2*680Ω (±2%)
