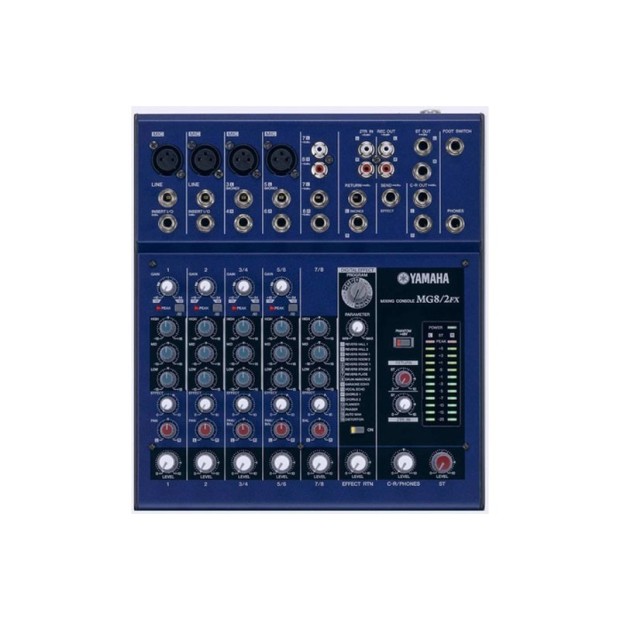

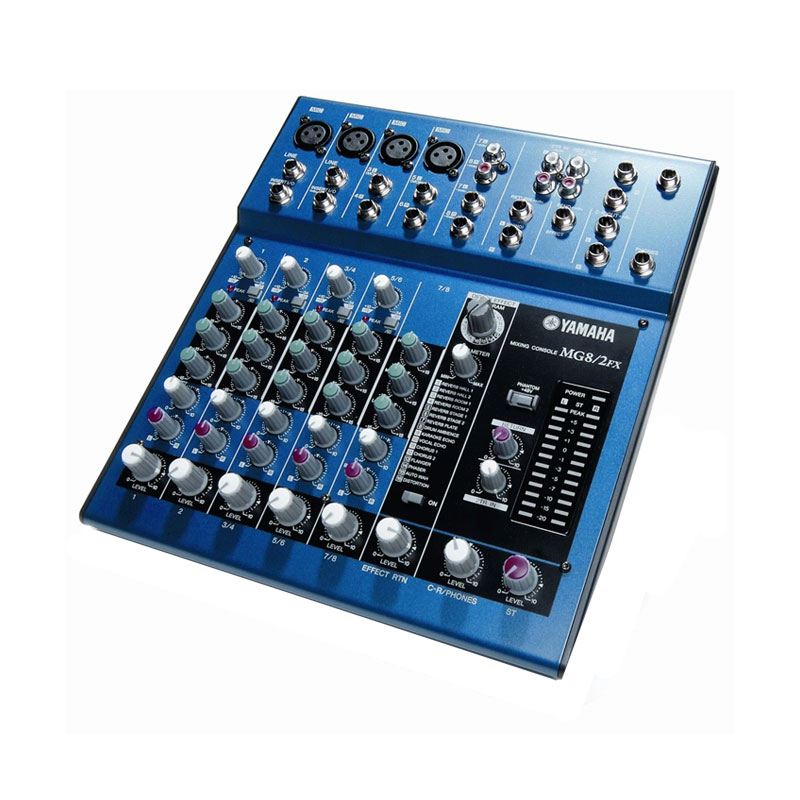

میکسر صدا یاماها Yamaha MG8/2FX

Features:

• Crosstalk: -70dB @ 1kHz
• Mic Input: 4 (Ch 1 - 2, 3/4, 5/6: XLR)
• Line Input: 2 (Ch 1 - 2: TRS:Phone)
• Stereo Input: 2 (Ch 3 - 4, 5 - 6: TRS:Phone), 1 (Ch 7 - 8: TRS:Phone/RCA:Pin)
• Insert I/O: 2 (Ch 1 - 2: TRS:Phone = T: Out, R: In, S: Gnd)
• Aux Send: 1 (Effect / AUX)
• Aux Return: 1 Stereo (L/MONO, R: TRS:Phone)
• Effects Send: (Same as AUX Send)
• 2 Track Input: 1 Stereo (L, R: RCA:Pin)
• Record Out: 1 Stereo (L, R: RCA)
• Stereo Out: 1 Stereo (L, R: TRS:Phone)
• C/R Out: 1 Stereo (L, R: TRS:Phone)
• Phones Out: 1 (TRS:Phone Stereo)
• Phantom Power: +48 V
• Channel and Stereo Channel Input Gain Control: 44 dB variable
• Channel and Stereo Channel High Pass Filter: 80 Hz 12 dB/Octave
• Channel EQ (+/-15 dB Max.): High, 10 kHz (Shelving); Mid 2.5 kHz (Peaking); Low 100 Hz (Shelving)
• Internal Digital Effects: 16 Programs, Parameter Control
• Dimensions: 9.88 in. x 11.41 in. x 2.55 in. (251 mm x 290 mm x 65 mm)
• Weight: 4 lb. (1.8 kg)
• Power Requirements: 20 W, 120 V, 60 Hz AC
