افکت گیتار الکتریک و وکال تی سی هلیکون TC Helicon VoiceLive 3 Extreme

Features:

• NEW - 4x internal memory of VoiceLive 3 for storing loops and backing tracks
• NEW - Backing track import with effects automation for killer synchronized performances
• NEW - Performance recorder sends 24-bit audio directly to a USB flash drive
• Guitar FX from the TC Electronic TonePrint series
• Vocoder and talk box built-in
• Mic pre automatically sets the gain for you
• Adaptive Tone for a truly professional, produced sound
• Global presets let you apply effects to any and all presets
• 3-phrase looping lets you create and store entire songs on-the-fly
• 3iC processing boasts dedicated processors for vocals, guitar, and looping respectively
• Remappable buttons let you customize the user experience

Vocal Effects

• µMod
• Echo & Delay
• Reverb
• Harmony
• Double
• Transducer
• Rhythmic
• HardTune & Correction
• Choir
• Stutter
• Vocoder
• Adaptive Tone

Guitar FX

• Amp Modeling
• Drive
• Delay
• Reverb
• Compression
• Resonant Filter
• Wah
• µMod (Flange, Chorus, De-tune)
• Shifter
• Rhythmic/Tremolo
• Talkbox (part of Vocoder)

Control

• 250 factory presets
• Memory for 500 presets
• 10 steps per preset
• 10 footswitches
• 6 preset-assignable footswitches for enabling/disabling FX blocks
• Backing track & FX automation control via footswitches
• Detailed editing
• Genre and Styles preset categories

Size

• Height: 3 inches (76 mm)
• Width: 13.8 inches (350 mm)
• Depth: 8.5 inches (216 mm)

Weight

• Weight: 5 lb. (2.3 kg)

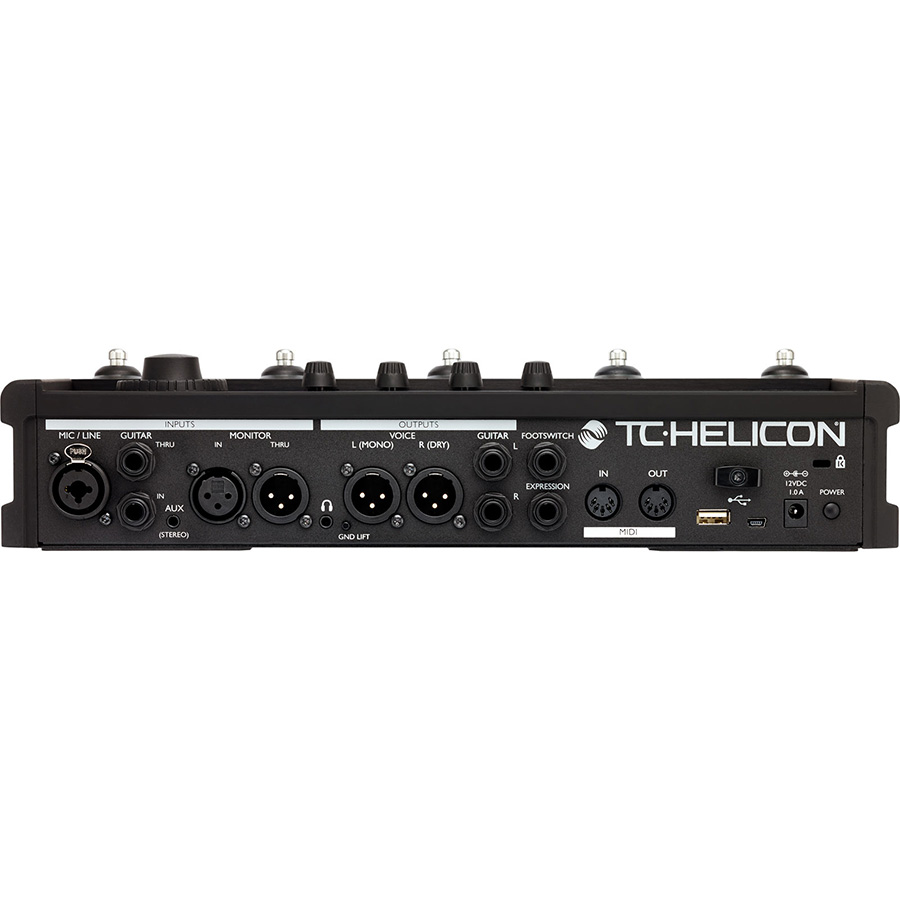

Analog Inputs

Voice

• Connector: Combo Balanced XLR/Balanced TRS 1/4″ phone jack
• Input Impedance Balanced: 3.08 kOhm
• Mic Input Level @ 0 dBFS: -52 dBu to +7 dBu
• Line Input Level @0dBFS: -40 dBu to +19 dBu
• EIN @ Max Mic Gain Rg = 150 Ohm: -127 dBu
• Mic SNR >100 dB at typical Mic Input gain
• Phantom Power: +48V (on/off via setup menu)
• A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted

Guitar

• Connector: 1/4″ phone jack
• Guitar Input Impedance: 1 MOhm
• Guitar Input Level @ 0 dBFS: -2 dBU to 14 dBu
• Guitar Input SNR >108 dB
• A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted

Monitor

• Connector: Balanced XLR
• Input Impedance Balanced: 25 kOhm
• Monitor Input Level @ 0 dBFS +16 dBu

Aux

• Aux: 1/8″ stereo mini jack
• Aux Input Level @ 0 dBFS +2 dBu

Analog Outputs

Voice

• Connectors: balanced XLR
• Output Impedance Balanced/Unbalanced: 300/150 Ohm
• Output Range 0 dBFS Line Level: +14 dBu; Mic Level: – 2dBu
• Dynamic Range >109 dB, 20 Hz to 20 kHz/li>
• Frequency Response +0/-0.3 dB, 20 Hz to 20 kHz
• D to A Conversion 24 Bit, 128 x oversampling bitstream, 115 dB SNR A-weighted

Guitar

• Connectors: 1/4″ TRS phone jack
• Output Impedance Balanced/Unbalanced: 442/221 Ohm
• Output Range 0 dBFS Line Level: +14 dBu; Mic Level: – 2dBu
• Dynamic Range >105 dB, 20 Hz to 20 kHz note
• D to A Conversion 24 Bit, 128 x oversampling bitstream, 106 dB SNR A-weighted

Headphone

• 1/8″ Mini stereo jack, 50 Ohm, +14 dBu max

Guitar thru

• Buffered Guitar Input
• Connector: 1/4″ TRS phone jack
• Output Impedance Bal/UnBal: 270/540 Ohms

Monitor thru

• Direct connection to Monitor input
• Connector: Balanced XLR
