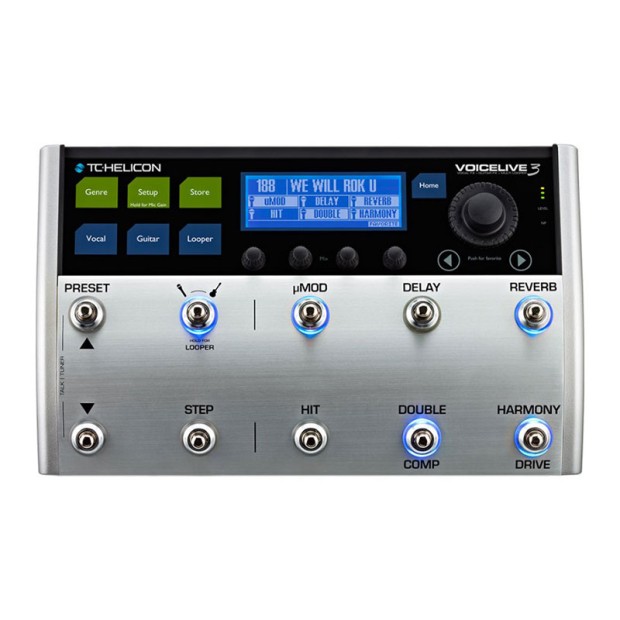

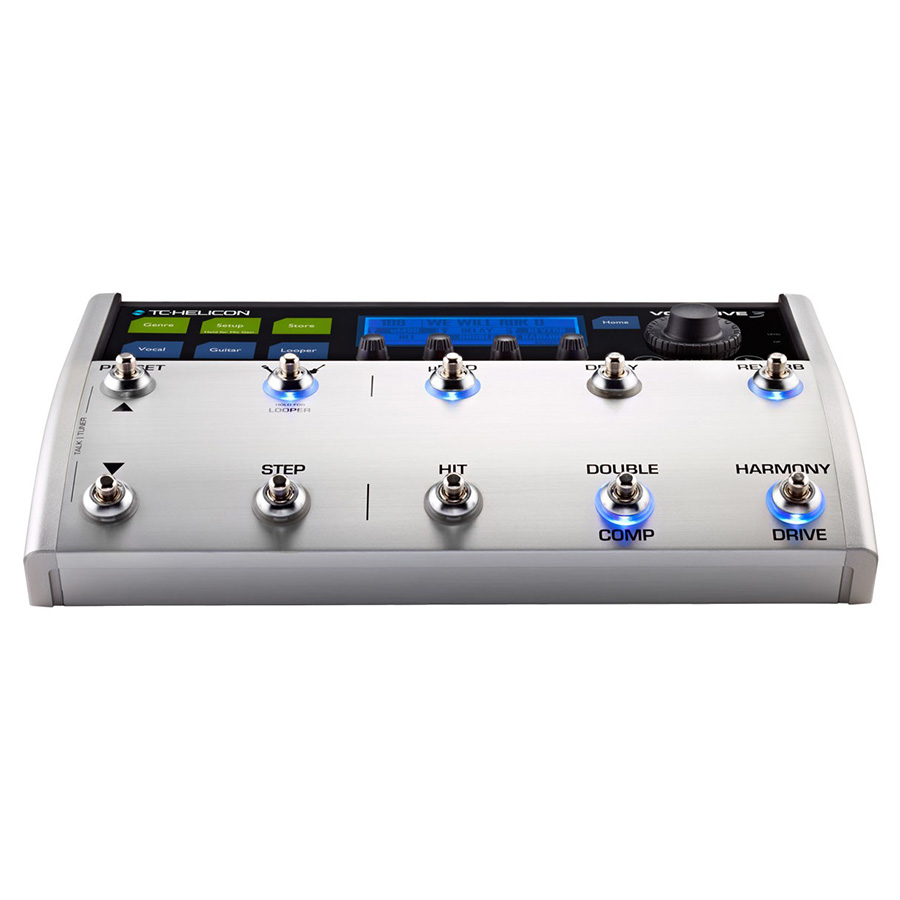

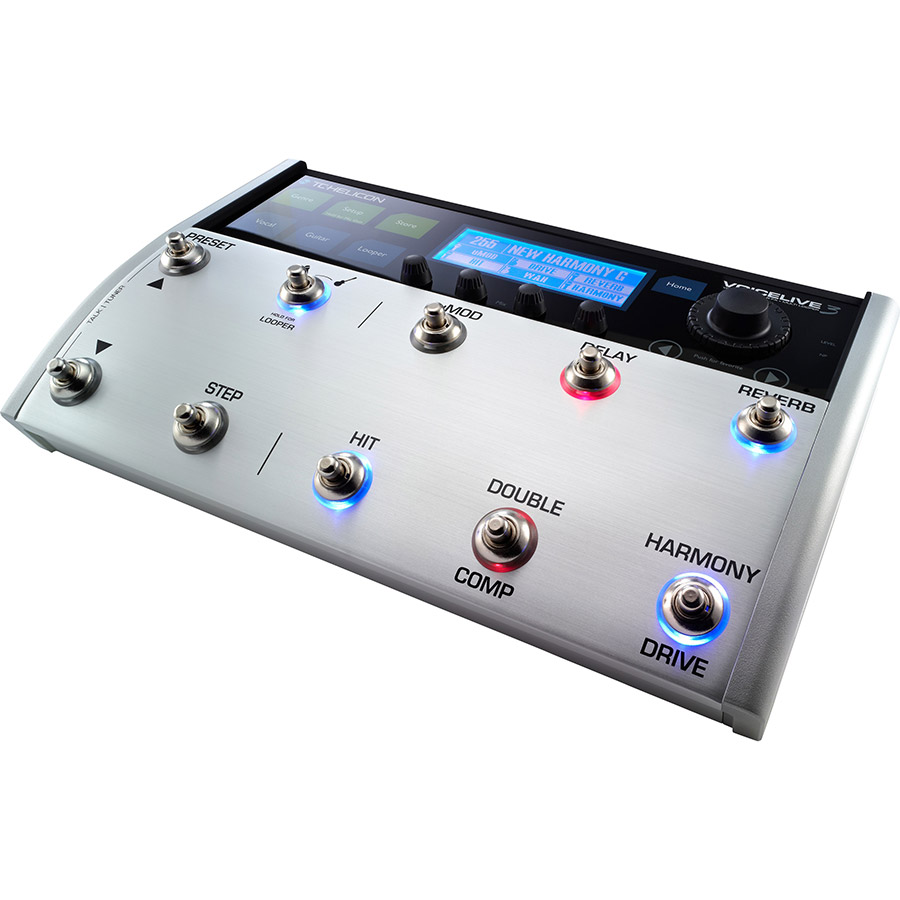

افکت گیتار الکتریک و وکال تی سی هلیکون TC Helicon VoiceLive 3

Vocal Effects

• µMod
• Echo & Delay
• Reverb
• Harmony
• Double
• Transducer
• Rhythmic
• HardTune & Correction
• Choir
• Stutter
• Vocoder
• Adaptive Tone

Size

• Height: 3 inches (76 mm)
• Width: 13.8 inches (350 mm)
• Depth: 8.5 inches (216 mm)

Weight

• Weight: 5 lb. (2.3 kg)

Construction

• Anodized extruded aluminum and steel chassis
• Rubberized edit/mix knobs
• Recessed rubberized handle
• 192 x 64 Blue STN LCD, white back light display
• Tri-colored Footswitch Light ring
• Capacitive touch edit controls with LED indicators

Analog Inputs

Voice

• Connector: Combo Balanced XLR/Balanced TRS 1/4″ phone jack
• Input Impedance Balanced: 3.08 kOhm
• Mic Input Level @ 0 dBFS: -52 dBu to +7 dBu
• Line Input Level @0dBFS: -40 dBu to +19 dBu
• EIN @ Max Mic Gain Rg = 150 Ohm: -127 dBu
• Mic SNR >100 dB at typical Mic Input gain
• Phantom Power: +48V (on/off via setup menu)
• A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted

Guitar

• Connector: 1/4″ phone jack
• Guitar Input Impedance: 1 MOhm
• Guitar Input Level @ 0 dBFS: -2 dBU to 14 dBu
• Guitar Input SNR >108 dB
• A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted

Monitor

• Connector: Balanced XLR
• Input Impedance Balanced: 25 kOhm
• Monitor Input Level @ 0 dBFS +16 dBu

Aux

• Aux: 1/8″ stereo mini jack
• Aux Input Level @ 0 dBFS +2 dBu

Analog Outputs

Voice

• Connectors: balanced XLR
• Output Impedance Balanced/Unbalanced: 300/150 Ohm
• Output Range 0 dBFS Line Level: +14 dBu; Mic Level: – 2dBu
• Dynamic Range >109 dB, 20 Hz to 20 kHz/li>
• Frequency Response +0/-0.3 dB, 20 Hz to 20 kHz
• D to A Conversion 24 Bit, 128 x oversampling bitstream, 115 dB SNR A-weighted

Guitar

• Connectors: 1/4″ TRS phone jack
• Output Impedance Balanced/Unbalanced: 442/221 Ohm
• Output Range 0 dBFS Line Level: +14 dBu; Mic Level: – 2dBu
• Dynamic Range >105 dB, 20 Hz to 20 kHz note
• D to A Conversion 24 Bit, 128 x oversampling bitstream, 106 dB SNR A-weighted

Headphone

• 1/8″ Mini stereo jack, 50 Ohm, +14 dBu max

Guitar thru

• Buffered Guitar Input
• Connector: 1/4″ TRS phone jack
• Output Impedance Bal/UnBal: 270/540 Ohms

Monitor thru

• Direct connection to Monitor input
• Connector: Balanced XLR

Power

• External Power Supply Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
• Power Consumption: < 14 W
