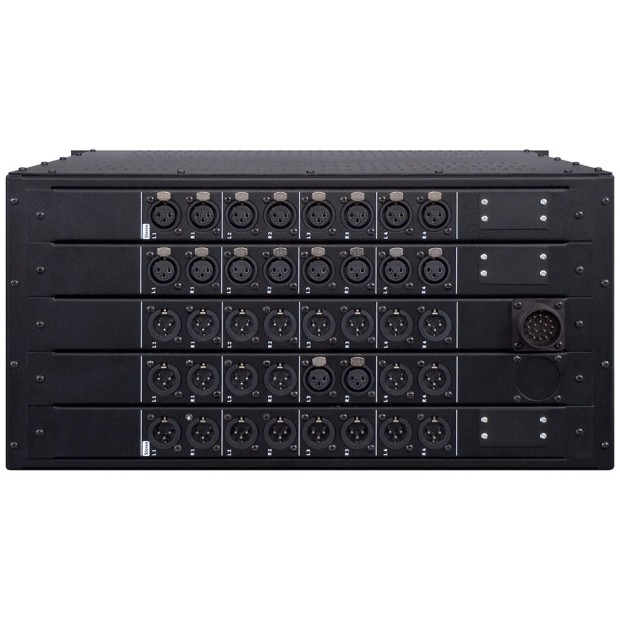

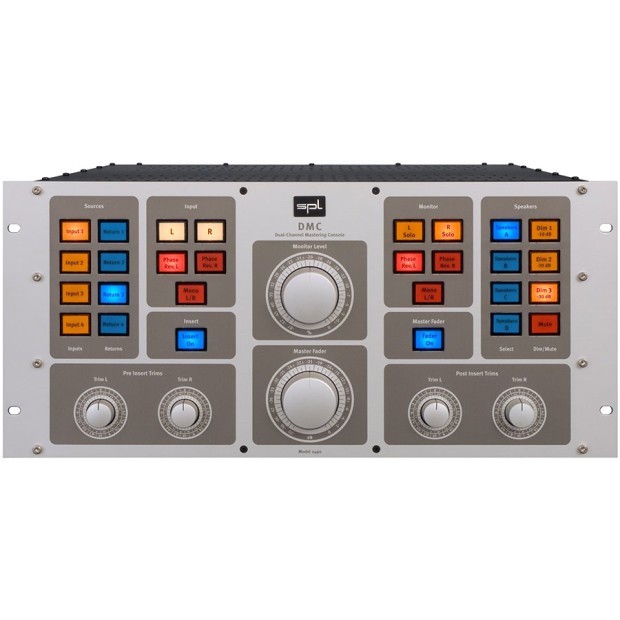

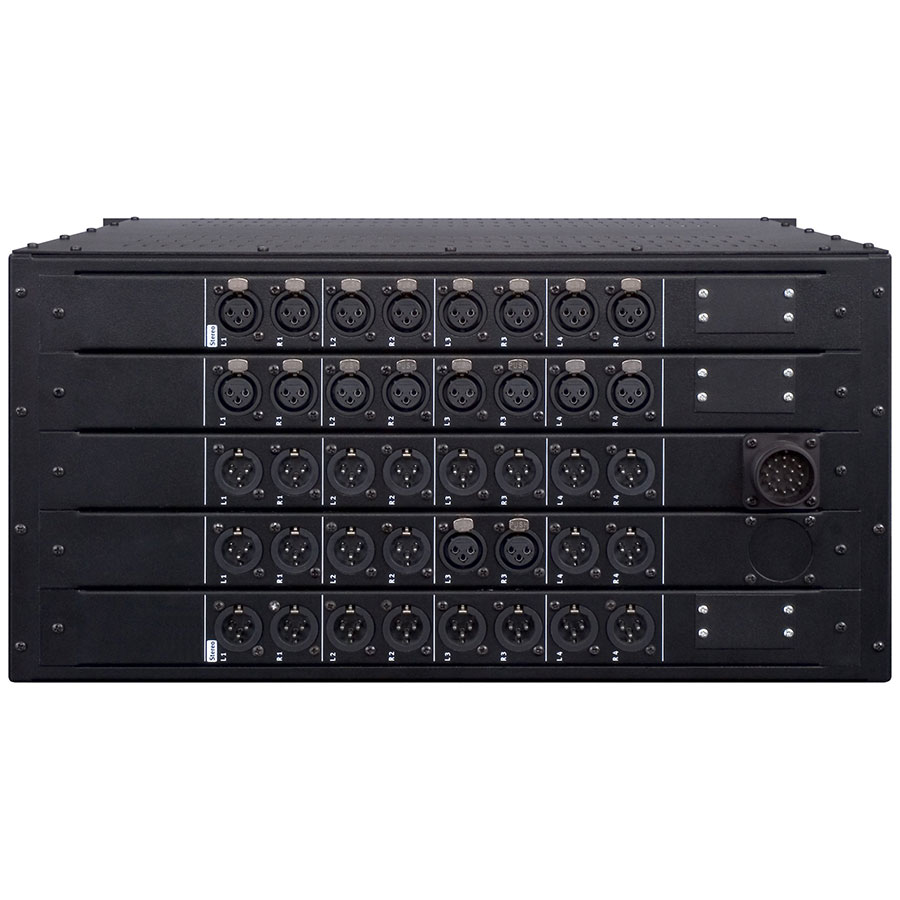

پردازشگر صوتی اس پی ال SPL DMC

Features:

• Dynamic Range ›130dBMax. input level ›30dBu (Audio Precision generator limit at +30dBu)
• Noise (A-weighted)
  • Recording Out: -102dBu
  • Monitor Out: -99,5dBu
  • Send: -103dBu
  • VU/Audio: -104dBu
• Crosstalk
  • Recording Out: -90dBu
  • Monitor Out:-75dBu
  • Send: -90dBu
  • VU/Audio: -100dBu
  • Return/Monitor Out: -75dBu
• Input impedance (balanced): 20 kOhm
  (Welwyn precision resistors, transformerless)
• Output impedance (balanced): ‹ 75 Ohm
  (CMR trimmers, transformerless)
• Dimensions
  • Front panel 19 inch/5U
  • Housing (H x W x D) 22 x 44 x 51 cm/8.8 x 17.6 x 20.4 inch
  • Weight 19.5 kg/42.9 lbs
• Power Supply
  • For optimal audio quality and dramatically reduced inductive disturbance/interference, the DMC’s power supply is divided into two parts. The external part houses a toroidal transformer, the linear power supply is built into the DMC housing.Input voltage: 110-120V/60Hz or 220-240V/50Hz
    Noise: › -100 dBu (@ +/- 60 V)
• Dimensions ext. transformer (H x W x D):
  7 x 15 x 24,5cm (2 3/4 x 5 9/10 x 9 8/10 inch)Weight ext. transformer: 4,2 kg (9,24 lbs)
