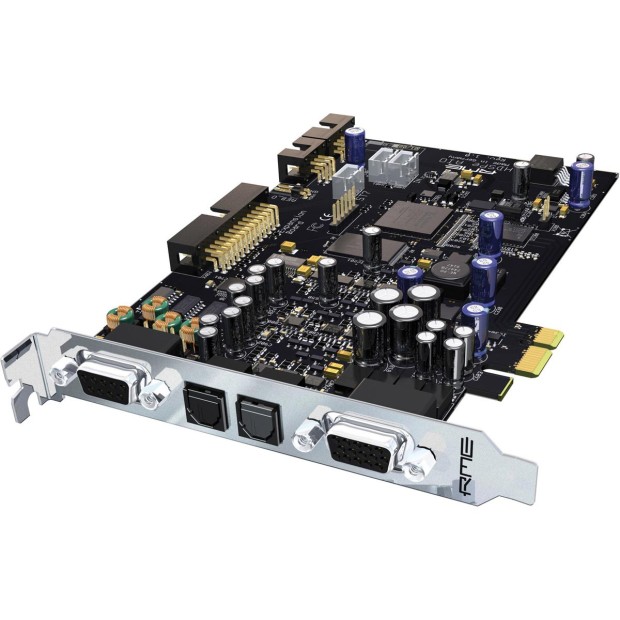

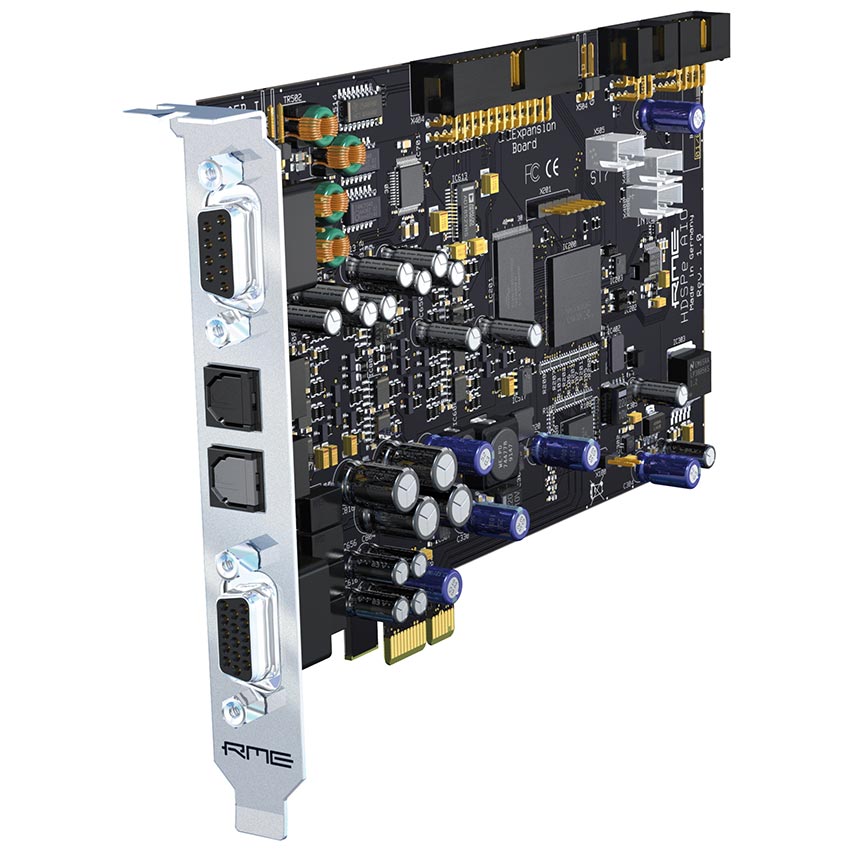

کارت صدا اینترنال آر ام ای RME HDSPe AIO

Features:

• Balanced stereo analog in- and output, 24-bit/192kHz, > 112 dB SNR
• Optional analog expansion boards with 4 balanced in- or outputs
• All analog I/Os capable of 192 kHz, constant number of available channels
• 1 ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
• 1 SPDIF digital I/O, 192 kHz-capable
• 1 AES/EBU digital I/O, 192 kHz-capable
• 1 Stereo headphone output, separate DA-converter and playback device
• So up to 18 inputs and 20 outputs can be used simultaneously!
• 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
• DIGICheck, RME's unique metering- and analyzing tool
• TotalMix: 760 channel Mixer with 42 bit internal resolution
• Native PCI Express - no PCI to PCI Express bridge used
• 1 x Stereo Analog I/O (192 kHz)
• 1 x ADAT I/O (up to 192 kHz via S/MUX4)
• 1 x SPDIF I/O (192 kHz)
• 1 x AES/EBU I/O (192 kHz)
• 1 x MIDI I/O
• 1 x Phones Output (separate DAC, 192 kHz)
• TotalMix
• 1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
• 2.5 Gbps line speed
• Packet-based full-duplex communication (up to 500 MB/s transfer rate)
• Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz
• 8 buffer sizes/latencies available: 0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
• All settings changeable in real-time
• Automatic and intelligent master/slave clock control
• Enhanced Mixed mode: All inputs and outputs simultaneously operational
• TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
• Unique status windows for record and playback, showing mode and sample rate
• DIGICheck, RMEs unique metering and analyzing tool
• Digital inputs and outputs ground-free transformer coupled
• 3-stage hardware level control for analog inputs and outputs
• Balanced analog input and output, DC-coupled signal path
• 192 kHz / 24-bit converters. SNR 112 dB RMS unweighted, 115 dBA
• Maximum input and output level (0 dBFS @ HiGain): +19 dBu
• Low impedance headphone output (30 ohm), separate DAC and playback device
• Super low jitter design: < 1 ns in all clock modes
