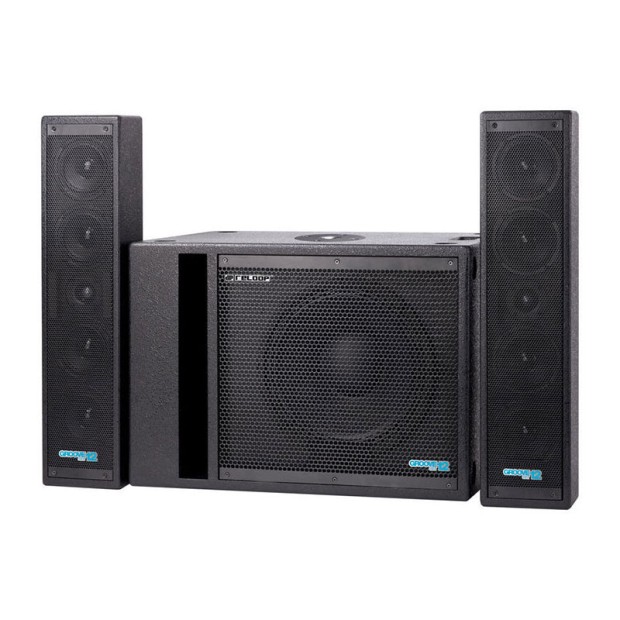

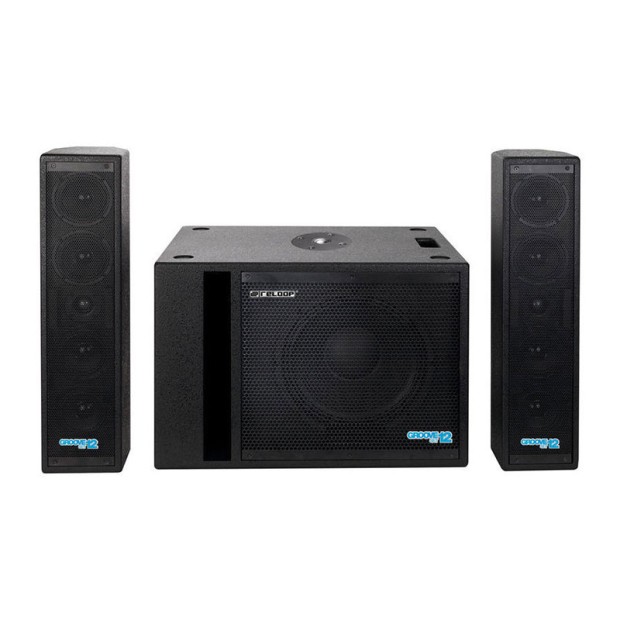

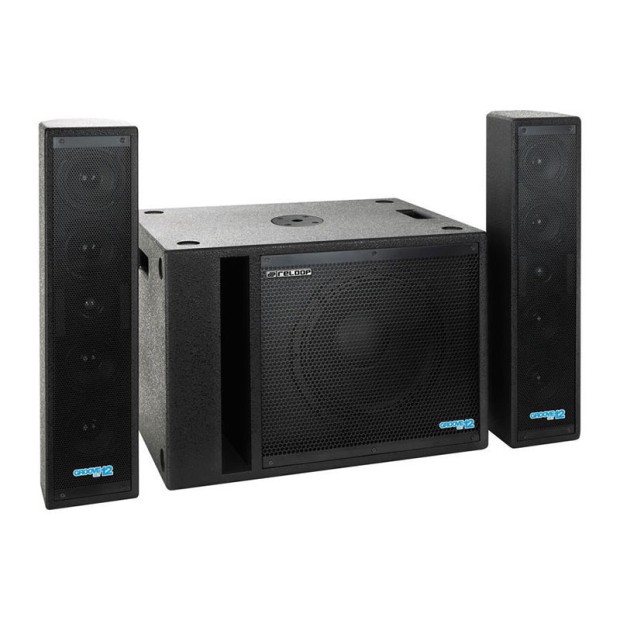

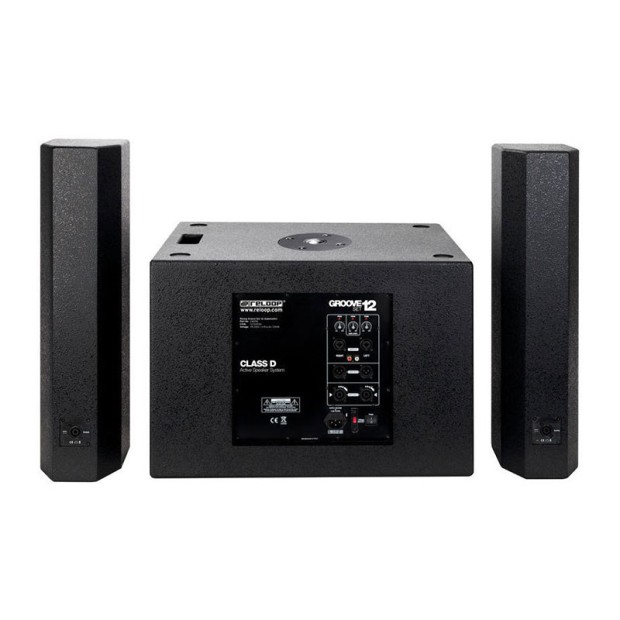

اسپیکر | باند اکتیو ریلوپ Reloop Groove 12

Features:

General specifications:

• Max. SPL (continuous): 118 dB/1 m/1 w
• Max. SPL (peak): 130 dB/1 m
• Frequency response: 35 Hz - 20 kHz at -3dB
• Dispersion (H x V): 90*90
• Weight subwoofer: 30 kg
• Weight satellites: 2x 6.8 kg
• Overall weight: 43.6 kg

Subwoofer specifications:

• Subwoofer output: 300 W RMS / 1400 W peak
• Low driver dimensions: 12''
• Woofer voice coil size: 3''
• Cabinet construction: Bass reflex
• Cabinet material: MDF
• Cabinet surface: Texture paint
• Subwoofer dimensions: 605 x 430 x 430 mm

Satellites specifications:

• Satellites output: 2x 100 W RMS / 2x 300 W peak
• Midrange size: 4x 4''
• Midrange voice coil size: 1''
• Tweeter voice coil size: 1''
• Tweeter magnet: Neodymium
• Satellites impendance: 8 Ohm
• Speaker input connections: Speakon compatible
• Satellites cabinet construction: Sealed
• Satellites cabinet material: MDF
• Satellites surface: Structure paint
• Satellites dimensions: 150 x 150 x 650 mm
• Further features: Reloop Groove handles, threaded flange

Amplifier module specifications:

• Amplifier type: Class D
• Amplifier output overall (RMS): 500 W
• Amplifier output overall (Peak): 2000 W
• Protection circuits: Signal limit, Amp overheat, overload and short circuit protections
• Cooling: Heat sink cooling
• Controls: Volume control for Sub & Satellites
• Indicators: Clip indicator
• Operating voltage: 115 V or 230 V, switching selector
• Power consumption: 700 W
• Number of Line inputs: 2
• Line input connectors: RCA, 1/4'' TRS or XLR
• Loudspeaker outputs: 2x Sats+1x Sub
• Speaker output connections: Speakon compatible
