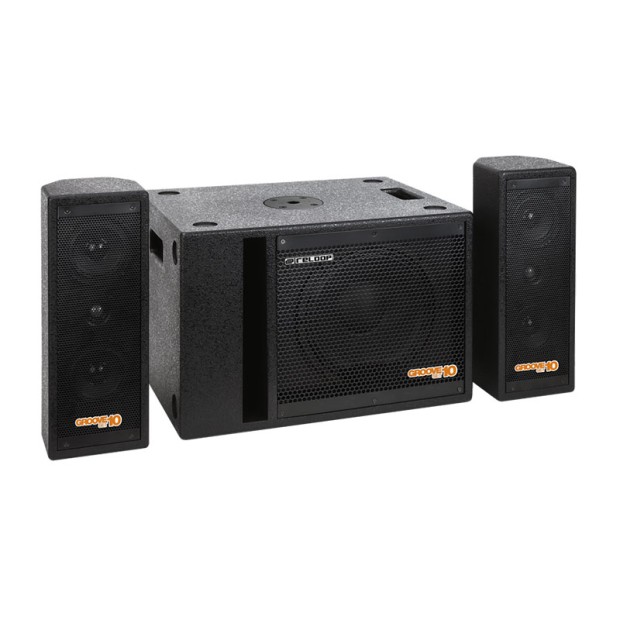

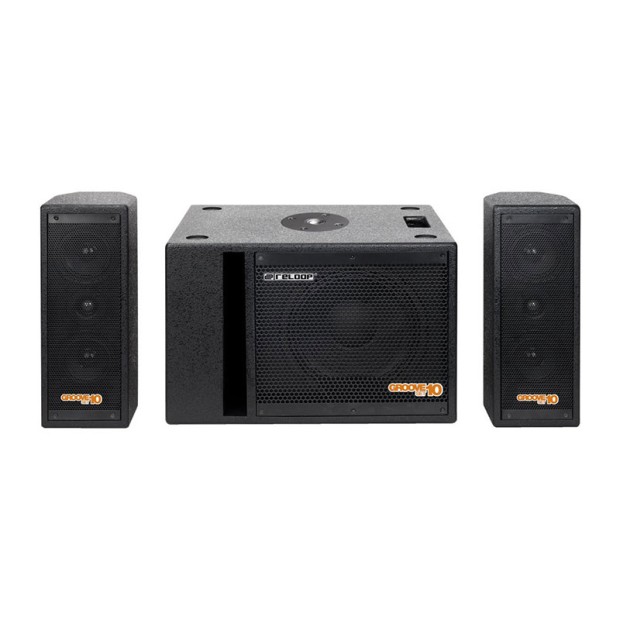

اسپیکر | باند اکتیو ریلوپ Reloop Groove 10

Features:

General specifications:

• Max. SPL (continuous): 114 dB/1 m/1 w
• Max. SPL (peak): 127 dB/1 m
• Frequency response: 45 Hz - 20 kHz
• Dispersion (H x V): 90*90
• Weight subwoofer: 20 kg
• Weight satellites: 2x 4.3 kg
• Overall weight: 28.6 kg

Subwoofer specifications:

• Subwoofer output: 230 W RMS / 1000 W peak
• Low driver dimensions: 10''
• Woofer voice coil: 2''
• Cabinet construction: Bass reflex
• Cabinet material: MDF
• Cabinet surface: Texture paint
• Subwoofer dimensions: 500 x 380 x 345 mm
• Further features: Reloop Groove handles, threaded flange

Satellites specifications:

• Satellites output: 2x 70 W RMS / 2x 240 W peak
• Midrange size: 2x 4''
• Midrange voice coil size: 1''
• Tweeter magnet: Neodymium
• Tweeter voice coil size: 1''
• Satellites impendance: 8 Ohm
• Speaker input connections: Speakon compatible
• Satellites cabinet construction: Sealed
• Satellites cabinet material: MDF
• Satellites cabinet surface: Structure paint
• Satellites cabinet dimensions: 150 x 150 x 410 mm
• Further features: Reloop Groove handles, threaded flange

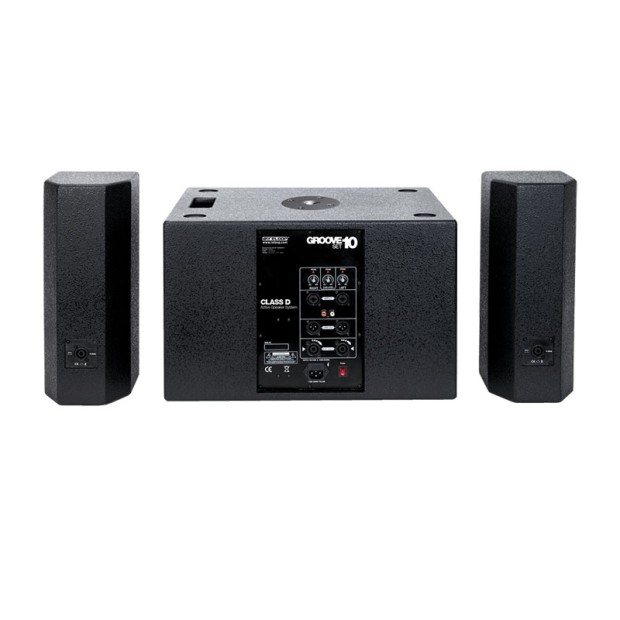

Amplifier module specifications:

• Amplifier type: Class D
• Amplifier output overall (RMS): 370 W
• Amplifier output overall (Peak): 1480 W
• Protection circuits: Signal limit, Amp overheat, overload and short circuit protections
• Cooling: Heat sink cooling
• Controls: Volume control for Sub & Satellites
• Indicators: Clip indicator
• Operating voltage: 100 - 240 V AC
• Power consumption: 500 W
• Number of Line inputs: 2
• Line input connectors: RCA, 1/4'' TRS or XLR
• Loudspeaker outputs: 2x Sats+1x Sub
• Speaker output connections: Speakon compatible
