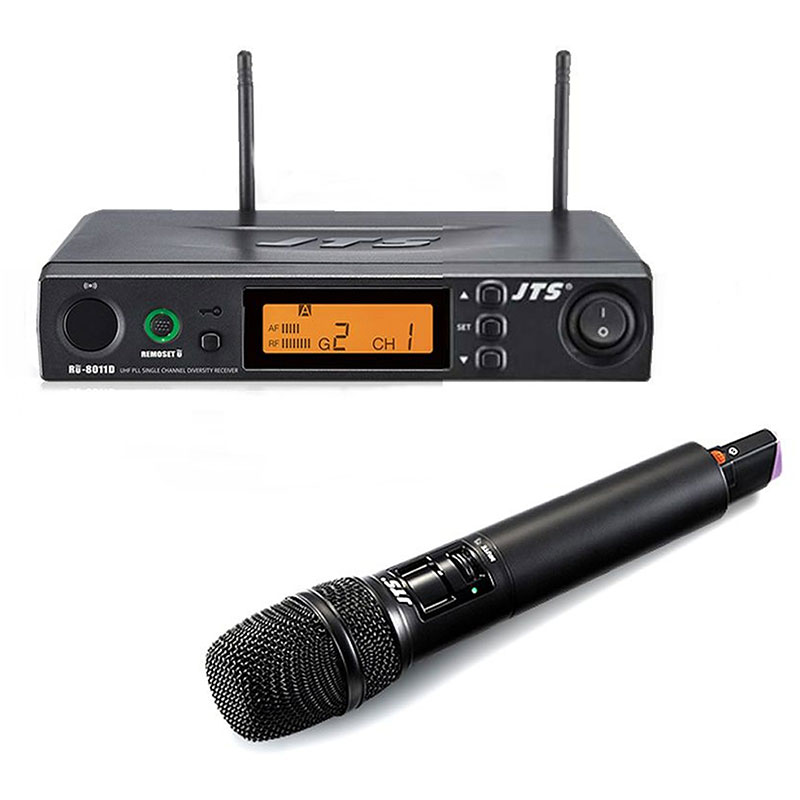

میکروفن بیسیم جی تی اس JTS 8011 D

Features:

RU-8011D

• Frequency Preparation PLL Synthesized Control
• Carrier Frequency Range 470~960 MHz
• Frequency Setting REMOSET U
• Receiving Mode Antenna Diversity
• Bandwidth 36MHz
• S/N Ratio >105dB(A)
• T.H.D <0.6%@1KHz
• Sensitivity -95dBm,S/N>80dB
• Rejection Ratio >80 dB
• Frequency Response 60Hz~15KHz±2dB
• Antenna Type Fixed Antenna
• Antenna Booster Power None
• Display LCD
• Display Contents Group, Channel, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
• Controls Power ON/OFF, Group, Channel, Mute Display, Frequency Scan (ON/OFF), Key Lock, Volume, Output Attenuation (XLR)
• Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
• Audio Output Impedance 600Ω
• Squelch Pilot Tone & Noise Mute
• Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.
• Power Supply DC12~15V/300mA
• Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)
• Notes Acutal product specifications may vary depending on region

RU-850TH

• Frequency Preparation PLL Synthesized Control
• Carrier Frequency Range 470~960MHz
• Frequency Setting REMOSET U(Receive)
• RF Outpus Low / High
• Stability <±10KHz@Fc
• Frequency Deviation ±48KHz
• Spurious Emissions <-50dBc
• Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
• Display LED
• Controls Power, Mute
• Battery UM3, AA x2
