Features:

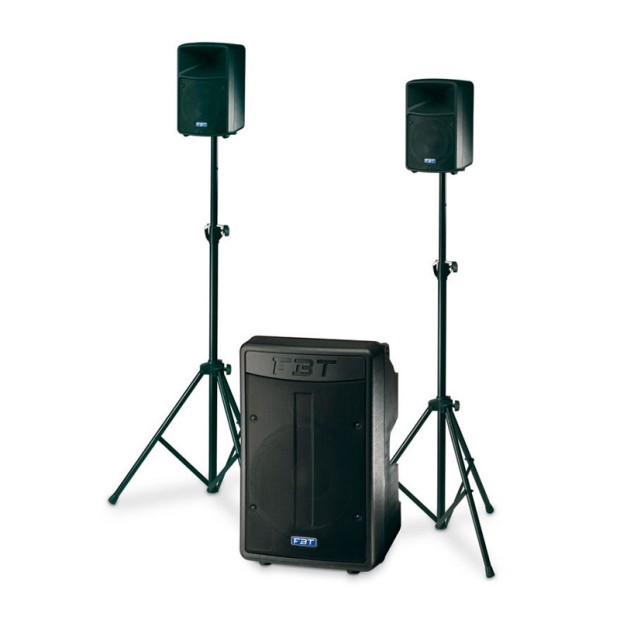

3-way, tri-amplified Bass-Reflex system

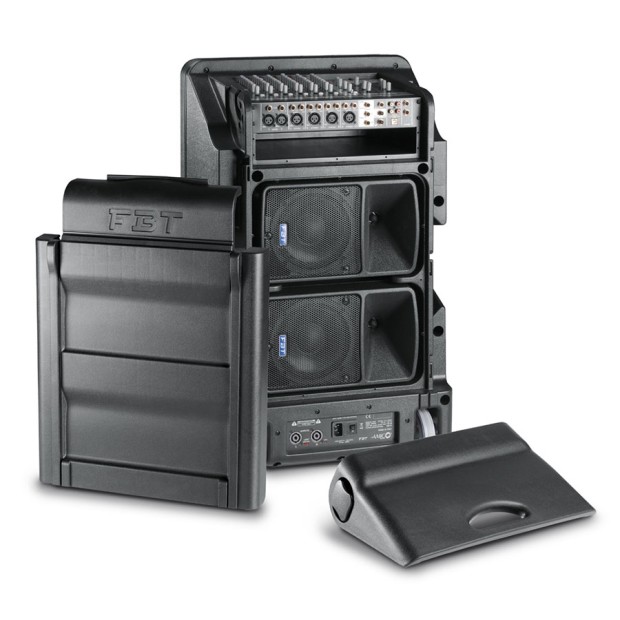

14 channel mixer with 99 presets digital multi effect and phantom power
USB connection for music programs in play and record

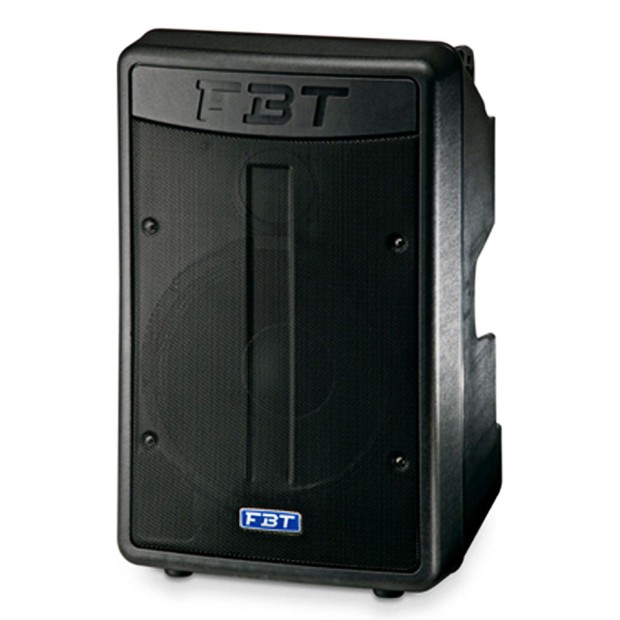

Subwoofer: 380mm (15”) high efficiency and high excursion custom neodymium magnet woofer with a 75mm (3”) voice coil
2 x Two way satellite speakers: featuring 165mm (6.5”) neodymium magnet woofers with 38mm (1.5”) voice coils, and a 25mm (1”) compression driver coupled to a 90°H x60°V constant directivity horn
500W rms Class D amplifier for subwoofer
2 x 150Wrms Class D amplifier for the satellite speakers
Switch mode power supply
Specification:
Configuration: 3 WAY / SUB+2SAT
Internal Amplifiers: 500 + 2x150 Wrms
Mixer Channels: 2mono + 4stereo
Mono Channels
Micro:
Quantity and type: 2 x XLR F
Impedance: 2,2 kohm
Max input signal: 0 dBu
Max gain: 75 dB
Equivalent input noise: -128 dB
CMRR (@ main out, gain 75dB): -80 dB
Line:
Quantity and type: 2 x JACK balanced
Impedance: 33 kohm
Max input signal: 30 dBu
Max gain (@ main out): 40 dB
Tone:
High Shelving (@ 12kHz): ±15 dB
Medium Peaking (@ 2,5kHz): ±12 dB
Low Shelving (@ 80Hz): ±15 dB
Stereo Channels
Micro:
Quantity and type: 4 x XLR F
Impedance: 22 kohm
Max input signal: 0 dBu
Max gain: 75 dB
Equivalent input noise: -128 dB
CMRR (@ main out, gain 75dB): -80 dB
Line:
Quantity and type: 8 x JACK balanced
Impedance: 22 kohm
Max input signal: 30 dBu
Max gain (@ main out ): 18 dB
Tone:
High Shelving (@ 12kHz): ±15 dB
Medium Peaking (@ 2,5kHz): ±12 dB
Low Shelving (@ 80Hz): ±15 dB
SUB:
Configuration: 1 Way
Internal amplifier: 500W SUB + 2 x 150W SAT Wrms
Frequency response @-6dB: 40Hz - 120Hz
Sensitivity (@1W, 1m): 97 dB
Maximum SPL (cont-peak): 124/130 dB
Dispersion: Omni-directional O x V
Low frequency woofer: 1x15 inch
SAT output connectors: 2 x SPEAKON
Satellite:
Configuration: 2 Way
Internal amplifier / Recommended: -/150 Wrms
Impedance: 4 ohms
Frequency response: -6dB 90Hz - 20kHz
Sensitivity (@1W, 1m): 93,5 dB
Maximum SPL (cont-peak): 115/125 dB
Dispersion: 90° x 60° O x V
Low frequency woofer: 1x6,5 inch
High frequency driver: 1x1 inch
Input connectors: 1 x SPEAKON
Power supply cable: 5m / 197 Inch
Net dimensions (WxHxD): 478 x 780 x 433mm / 18,8x30,7x17 Inch
Net weight: 34 kg / 74 lb
Transport dimensions (WxHxD): 570 x 880 x 570mm / 22.4 x 36.5 x 22.4 Inch
