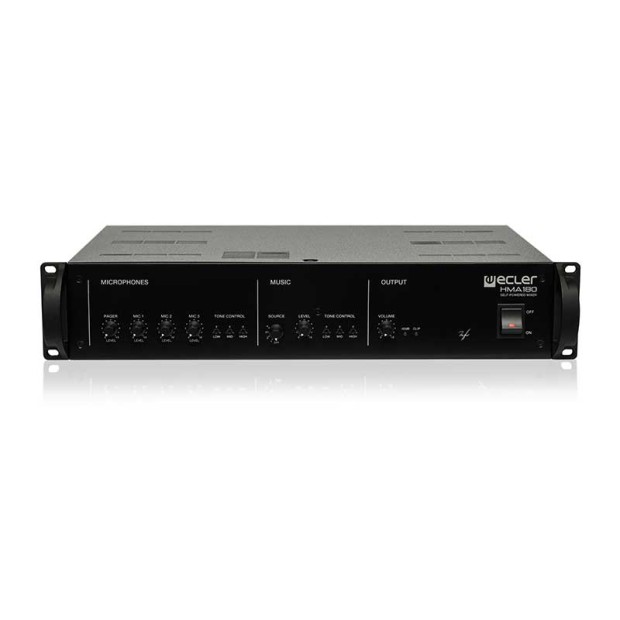

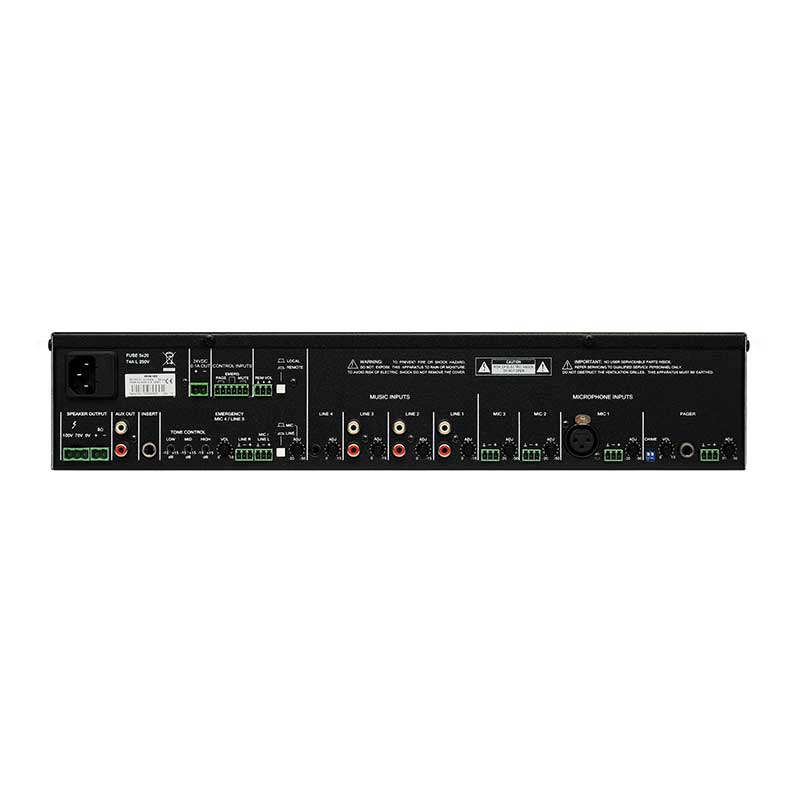

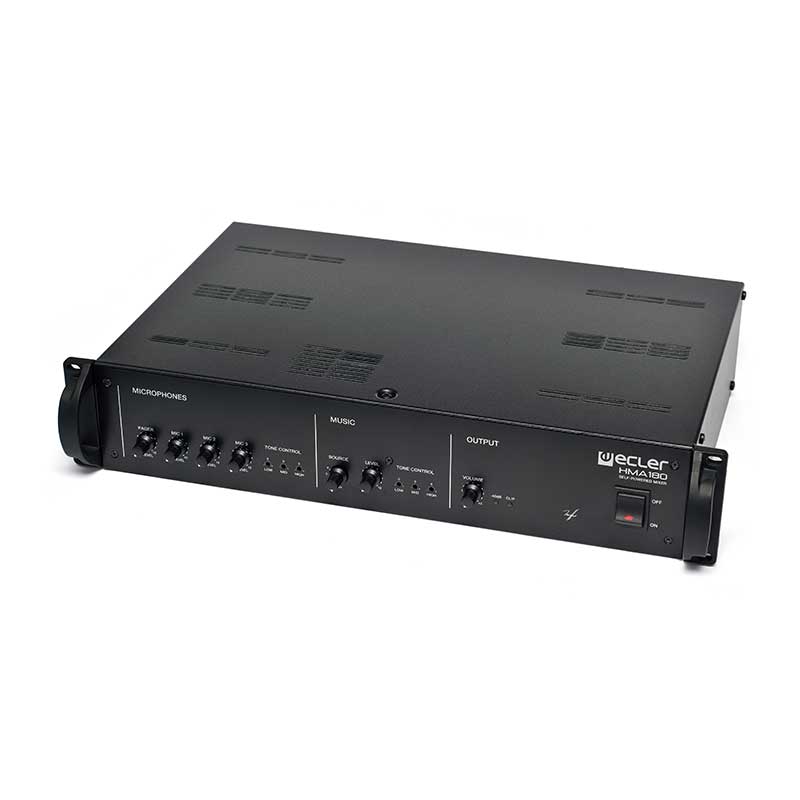

پاور میکسر اکلر Ecler HMA180

Features:

• 4 MIC balanced and 4 LINE inputs
• Independent 3 band EQ for the MIC mix and LINE mix busses
• Pager and chime function, MIC1 input (voice level or contact closure activation)
• Additional EMERGENCY MIC/LINE input with independent features:-Selectable phantom power-3 band EQ-Activation mode: VOICE / CONTACT-Independent output volume level (from the MASTER volume)
• Class D 180 W amplifier, convection cooled (100% silent)
• Remote Volume control port (0 –10 VDC)
• Remote MUTE control port
• 24 VDC control output, triggered by the PAGER and/or EMERGENCY functions (to activate priority relays)
• Subsonic filter (@ 70 Hz)
• Insertion point in TRS format
• 8Ω , 70 V, 100 V powered output
• LINE level AUX output (allows for an external amplifier connection, like the HSA300 or HZA-F amps, in case that higher power is required)
