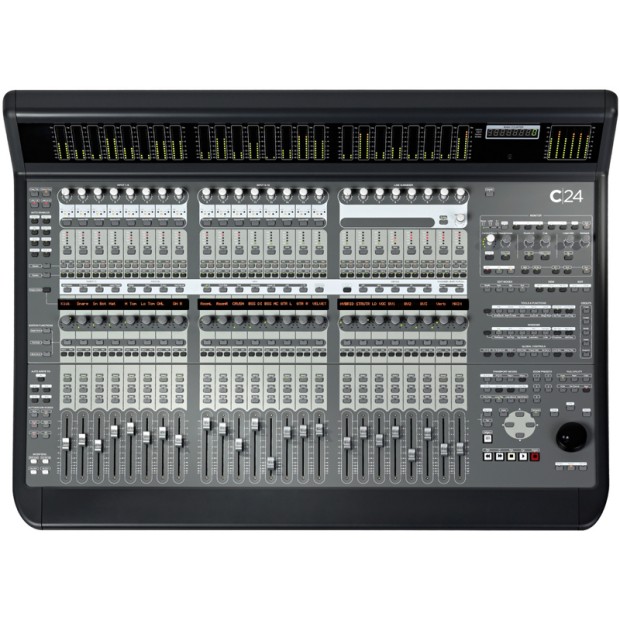

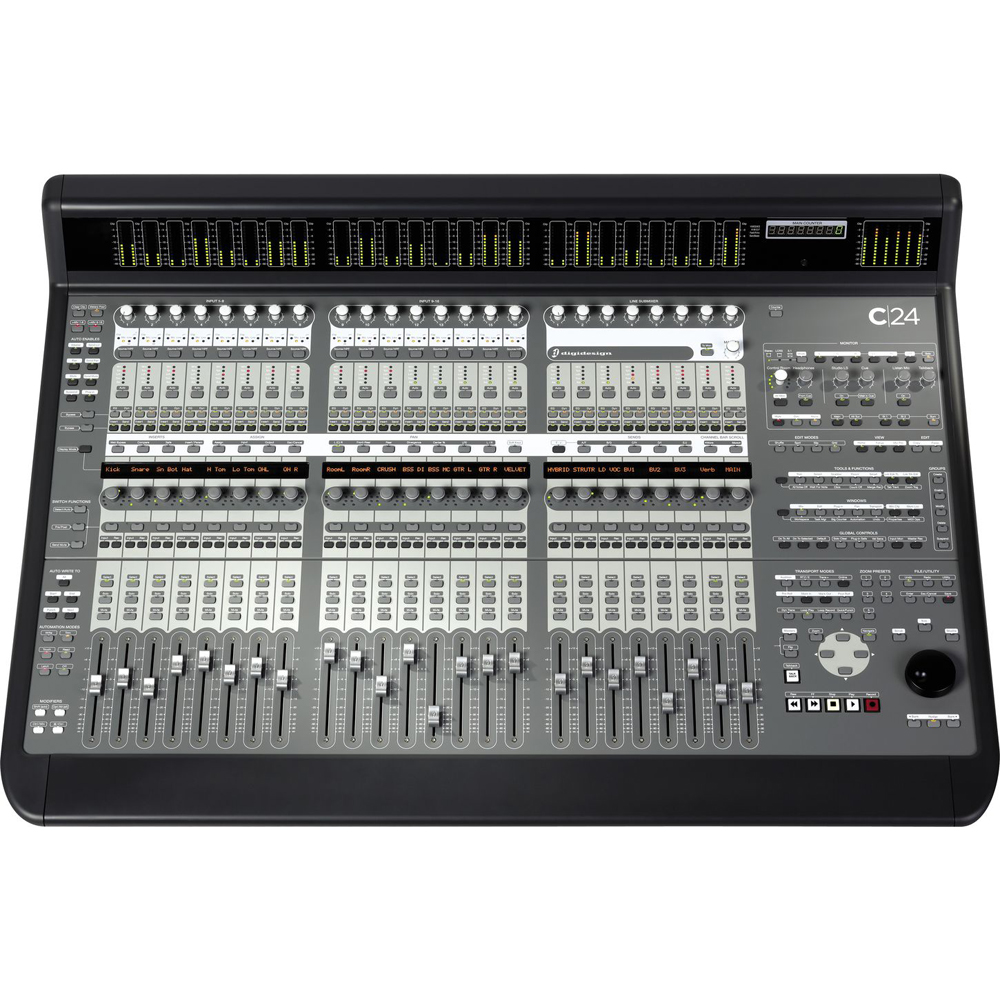

میکسر صدا اوید Avid C|24

Mic  Input
Gain: +2 dB – +51 dB; Frequency Response: -0 dB @ 10 Hz, -1 dB  @ 100 kHz; Maximum Input: +16 dBu; Maximum Output: +18 dBu; EIN:  -127 dBu; THD+N: 0.004% @ 1 kHz, -1 dBFS @ 40 dB  gain

Line Input
Gain: -6 dB – +43 dB;  Frequency Response: -0.5 dB @ 10 Hz, -1 dB @ 100 kHz; Maximum Input:  +24 dBu; Maximum Output: +18 dBu; Dynamic Range: 108 dB A-weighted /  105 dB (unweighted); THD+N: 0.004% @ -3 dBFS

• 24 bankable channel strips, each with a touch-sensitive, motorized fader and dedicated Mute, Solo, Select, Input, Record, EQ, Dynamics, Insert, Send, and Automation buttons
• Easy-to-read, 6-character, dual-row LED scribble strip displays provide instant visual feedback for channel names, plug-in parameters, sends, panning, and other editing functions
• 24 high-quality rotary encoders with LED rings
• 16 high-quality mic / line / DI preamps with high-pass filters and variable input gain allow direct mic, instrument, and line-level connections (via DB25) for recording through a Avid audio interface

• Direct hands-on access to recording, editing, routing, and mixing functions in Pro Tools|HD or Pro Tools LE
• 8-channel stereo line submixer, which can be routed directly to the monitor section
• Professional, integrated 5.1 surround analog monitor system with trimmable inputs and outputs
• Built-in talkback mic and inputs for remote talkback and listenback
• External power supply allows for a more streamlined console design
• Intelligent switch design with bold graphics makes the layout easy to memorize and navigate
• Sleek, low-profile industrial design with stylish dark graphite color scheme
